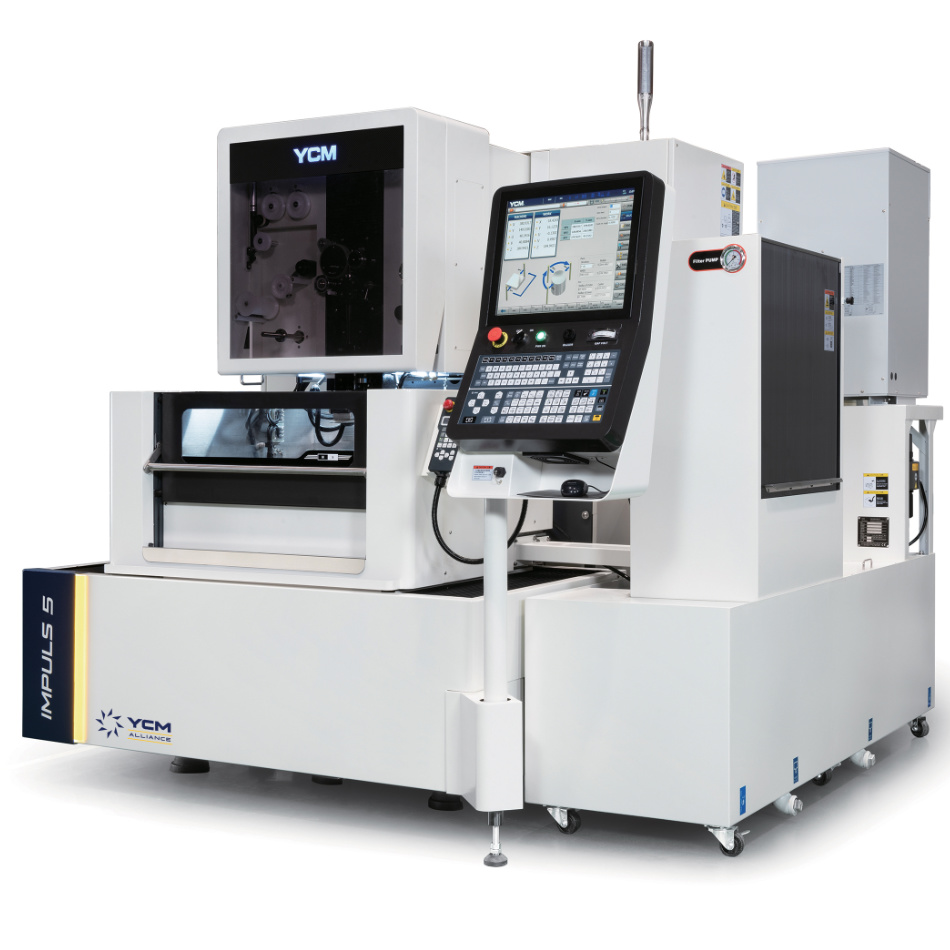

YCM IMPULSE Series
The Impuls Series is specially designed for challenging wire EDM applications and is built to high-quality standards, providing industry-leading performance and long-term reliability. Applications include a wide range of materials and components serving multiple industries.
| Model | Maximum Work Piece Size | Travel (X/Y/Z) |
|---|---|---|
| IMPULSE 4 | 29.5” (750 mm) x 21.7” (550 mm) x 8.5” (215 mm) | 15.7” (400 mm) / 11.8” (300 mm) / 8.7” (220 mm) |
| IMPULSE 5 | 33.5” (850 mm) x 21.7” (550 mm) x 11.8” (300 mm) | 19.7” (500 mm) / 11.8” (300 mm) / 12.2” (310 mm) |
| IMPULSE 6 | 39.4” (1,000 mm) x 27.6” (700 mm) x 13.6” (345 mm) | 23.6” (600 mm) / 15.7” (400 mm) / 13.8” (350 mm) |
Download the IMPULSE Series catalog
- Submerged wire threading
- Excellent price-to-performance ratio
- Superb accuracy and Performance
- Continuous unmanned operation day and night
- Evolution auto thread system
- User-friendly graphical interface
- Automation
Easy-to-use graphical interface
Auto rethread at wire break point – 500mm thick

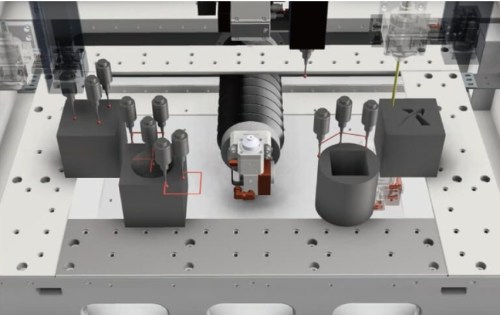

(Opt) On-machine measurement and calibration
(Opt) SFC-Super Finish Circuit
High-frequency sparking energy provides Ra0.2um surface roughness with 1 rough cut plus 6 skim cuts.
- Material: Tungsten Carbide
- Thickness: 30mm
- Best Surface Roughness Ra 0.14 µm
