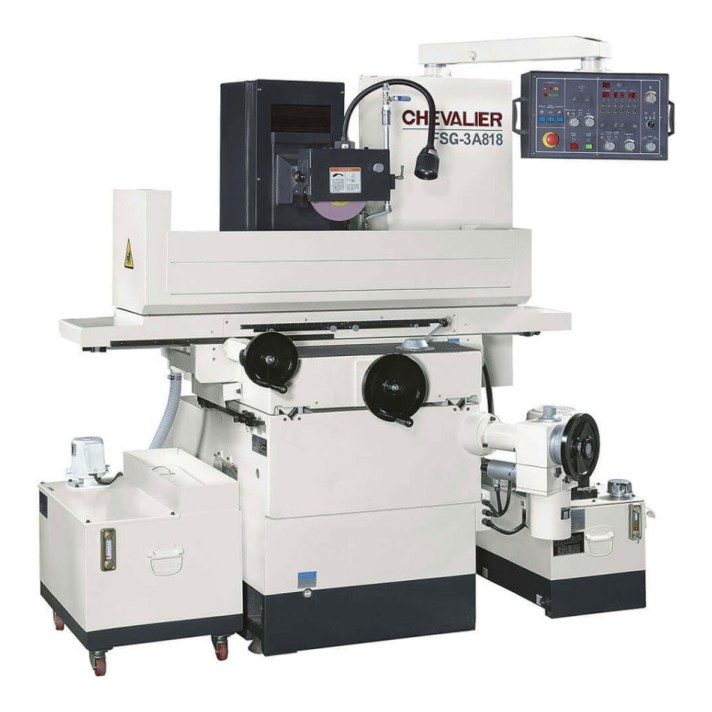

Chevalier FSG-3A818 (Automatic Grinder)

Features:

  • High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding
  • 3-Axis fully automatic with surface and plunge grinding cycles
  • Separate hydraulic system prevents vibration & reduces heat transference
  • Saddle travels on Turcite-B coated and hand scraped double V guideways.
  • Meehanite® cast iron
  • Wheel head rises up automatically and table parks at left or right side after cycle is completed

Specifications:

  • Table Size: 8″ x 18″
  • Max Dist from Table Surface to Spindle Center Line: 17.7″
  • 2HP Spindle Motor
  • Wheel Dia./Width/Bore: 8″ x 1/2″ x 1.3″
  • Floor space (W x D x H) 88.6″ x 70.5″ x 74.8″
  • Machine Weight 2910 LBS

Contact J&M Precision Products for Additional Information
