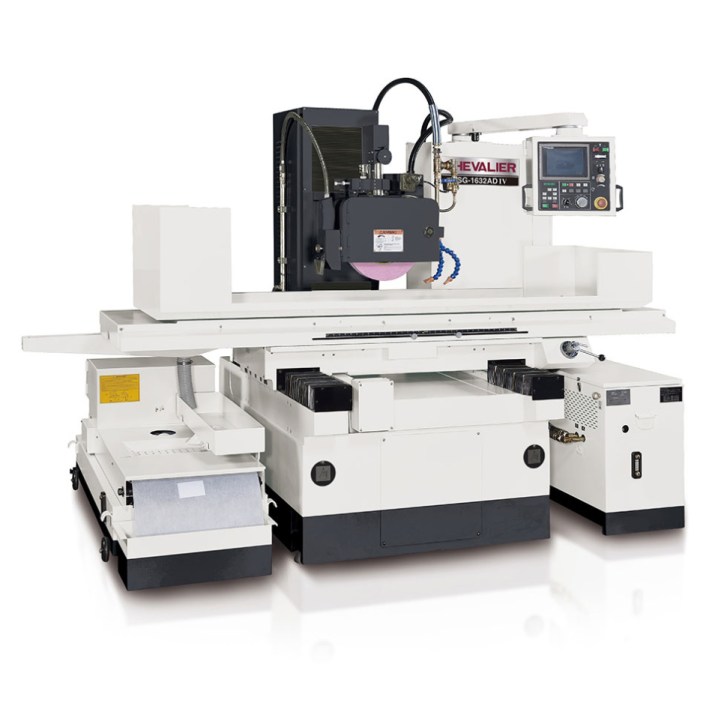

Chevalier FSG-1632ADIV

Features:

• PLC touch screen 3 axes fully automatic surface and plunge grinding system
• 10.4” TFT high resolution 65536 color control to ensure ease of operation
• High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding Remove period
• Wheel head will raise up to end, start and reference positions
• Table parks at left or right side after cycle is completed
• I/O diagnosis & alarm display
• To achieve better accuracy, the number of free passes between down-feeds can be preset depending on work piece material Remove period

Specifications:

• Control iSurface
• Grinding WidthLength 15.9″ X 32″
• Table Size: 15.7″ x 31.5″
• Max Dist from Table Surface to Spindle Center Line: 24.0″
• 5 HP (opt. 7.5 HP) Spindle Motor
• Wheel Dia./Width/Bore: 14″ x 2″ x 5″
• Floor space (W x D x H) 139.4″ x 66.9″ x 82.7″
• Machine Weight 6390 LBS
