Chevalier FVL-1600VTC

Heavy-duty Vertical Turning Centers

  • A patented coupling type clamping system with 8 hydraulic locking pins assists in keeping the tool in place during heavy stock removal.
  • The Y model is designed for key-slot milling of large-sized and/or heavy workpieces.
  • The beam elevation system with a large diameter ball screw is designed to quickly lock at any position.
  • The 240mm or 280mm square RAM box-in-box design and 4-sides box ways contact give machine the excellent cutting support.
  • The +C model with the live tooling function offers additional flexible machining capabilities to make more complex workpieces with one machine.

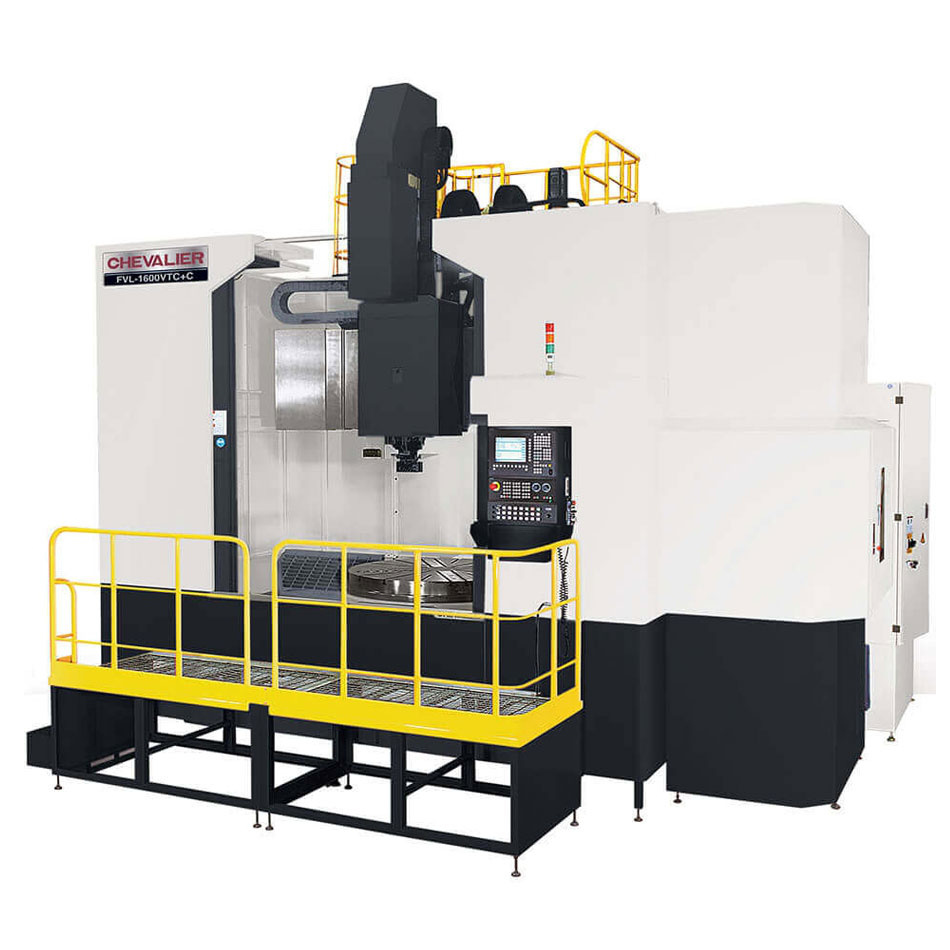

Chevalier FVL-1600VTC vertical turning center, VTL


  • Control Fanuc 0i-T
  • Max. swing diameter 78.7”
  • Max. cutting diameter 78.7”
  • Max. turning height 51.6”
  • Max. table load 22,000 lbs.
  • Table diameter 63.0”
  • C-Axis (FVL-1600VTC+C)
  • Floor space (W x D x H) 284.3” x 248.0” x 226.4”
  • Net weight 70,500 lbs.

Chevalier FVL series catalog
