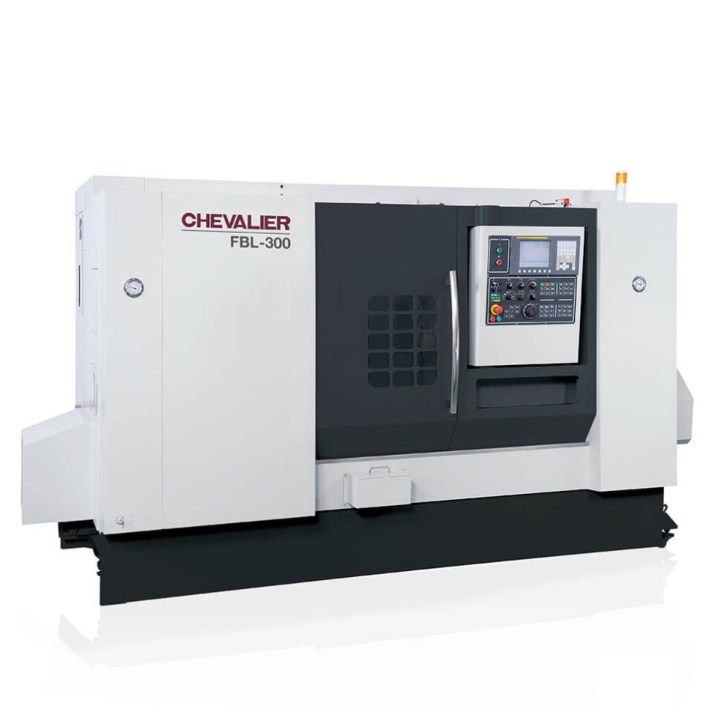

Chevalier FBL-300 Series
Features:
- 45-degree slant-bed structure with low center of gravity offers easy access and workpiece changeovers.
- Torque tube design structure that can withstand greater stress without deforming and provides maximum vibration damping.
- Ribbed Meehanite® casting provides strong support and excellent damping absorption reducing deflection and vibration during heavy machining.
- This lathe features up to 25HP spindle motor satisfying most cutting conditions.
- MC model with the live tooling function offers additional flexible machining capabilities to make more complex workpieces with one machine.
- L model is the long bed design that provides higher cutting lengths.
Control:
- Fanuc 0i-TF series
- 8.4″ TFT LCD
- Minimum programmable increment: 0.0001“
- Inch/metric conversion
- Over travel
- Store stroke check 1
- Stroke limit check before move
- Chuck and tail stock barrier
- Mirror image
- Chamfering on/off
- Backlash compensation
- Backlash compensation for each rapid traverse and
- cutting feed
- Stores pitch error compensation
- Position switch
| Specifications | FBL-300 | FBL-300MC (Live Tooling) | FBL-300L (Long Bed) | FBL-300LMC (Live Tooling & Long Bed) |
|---|---|---|---|---|
| Max. Turning Diameter | 20″ | 15.4″ | 20″ | 15.4″ |
| Max. Turning Length inch | 23.4″ | 21.8″ | 61.2″ | 59.6″ |
| Chuck Size | 10″ (Opt 12″) | 10″ (Opt 12″) | 10″ (Opt 12″) | 10″ (Opt 12″) |
| Spindle Through Hole | 3.5″ | 3.5″ | 3.5″ | 3.5″ |
| Spindle Motor HP | 20/25 | 20/25 | 20/25 | 20/25 |
| Turret Capacity | 10 (Opt 12) | 12 | 10 (Opt 12) | 12 |
| C-Axis | .001 Degree | .001 Degree | ||
| Live Tooling | X | X | ||
| Quill Stroke | 5.1″ | 5.1″ | 5.1″ | 5.1″ |
| Machine dimensions (W x D x H) | 135″ X 76″ X 79″ | 110″ X 70″ X 70″ | 185″ X 79″ X 79″ | 185″ X 79″ X 79″ |
| Machine Weight | 12,760 lbs | 12,760 lbs | 19,800 lbs | 19,800 lbs |
