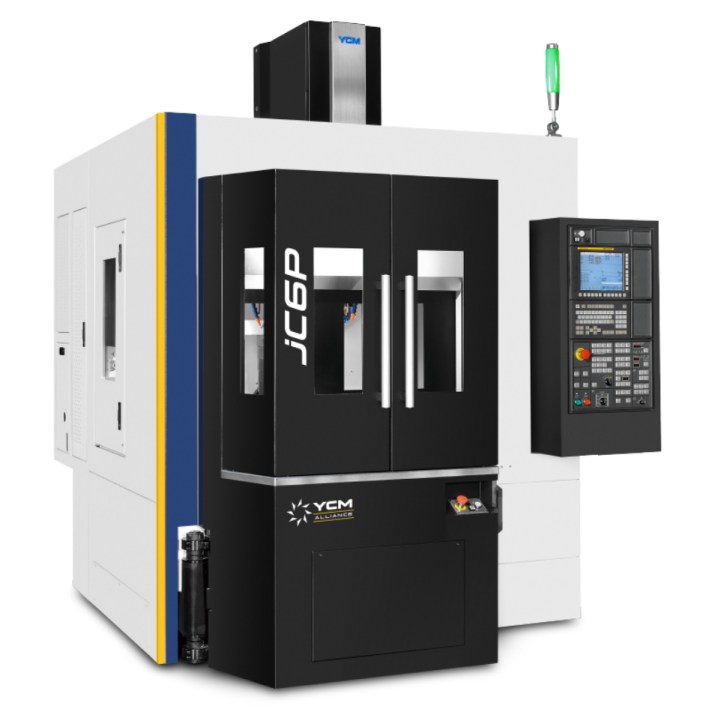

YCM jC6P

The jC Series is designed with versatility in mind. This platform is ideal for the demands of shops performing general parts machining across a large spectrum of industries, including aerospace, automotive, medical, energy, and more.

Specifications:

  • Travels 23.6″ x 16.1″ x 17.7″
  • Pallet Size: 22.1″ x 16.12″
  • Automatic Pallet Change
  • Table Load Capacity: 256 lbs
  • 1,890 ipm Rapids
  • Max Cutting Feedrate 787 ipm
  • CTS Prep
  • Circular Coolant Nozzle
  • Cutting Air Blast
  • Oil Skimmer
  • Unique Coolant Shower System
  • Chip Conveyor
  • 24 Tool ATC
  • Machine Weight 8,426 lbs

Automatic Pallet Changer

  • Pallet Size: 22.1″ x 16.12″
  • Table Load Capacity: 256 lbs

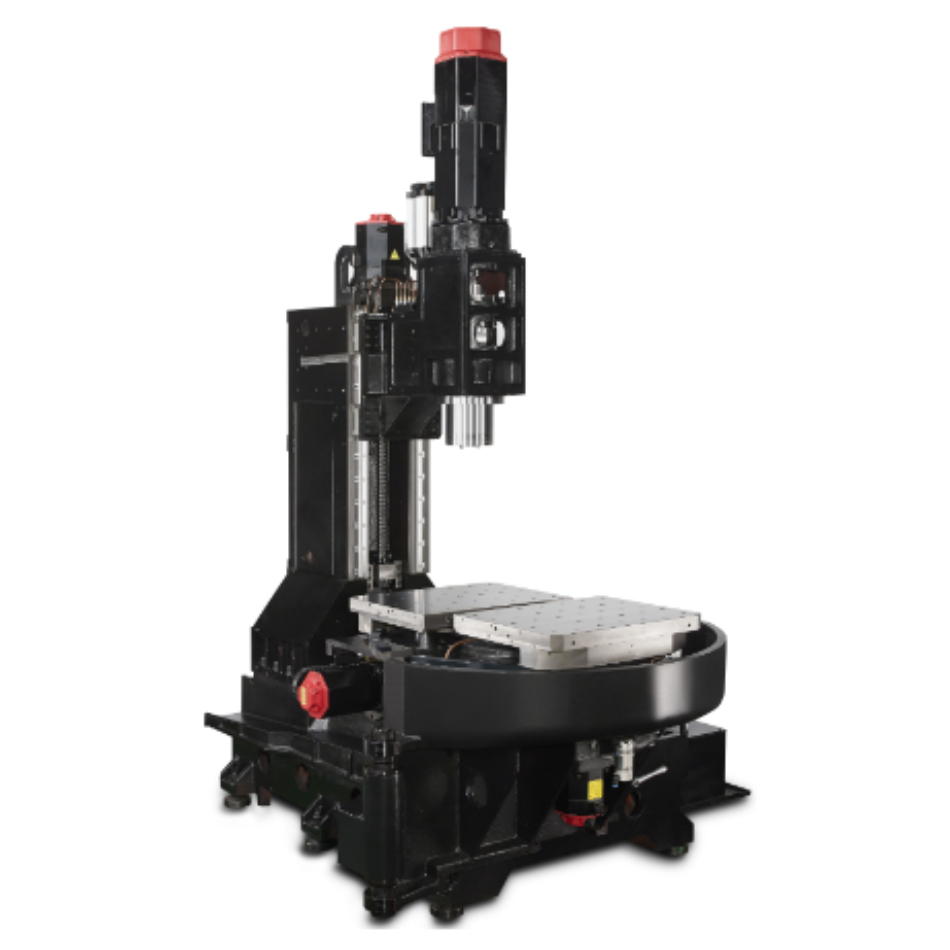

Hand Scraped Joints

Hand Scraped joints provide increased structural rigidity, maximum stiffness, and optimum cutting performance.

YCM In-house IDD Spindle

  • YCM High precision IDD 12,000 rpm spindle
  • 25HP, BBT-40 Taper
  • Spindle Chiller
  • (Opt 15,000 rpm)

Control

  • Fanuc MXP200FB+ Control
  • AICC II+, high precision, and high accuracy AI contour control.
  • Smooth tolerance control+
  • Machining quality level adjustment function.
  • 400 blocks of look-ahead
  • 1ms Block processing time
  • Smart rigid tapping function combined with spindle capability for high-speed machining. *

YCM jC6P (NXV560A-APC)
