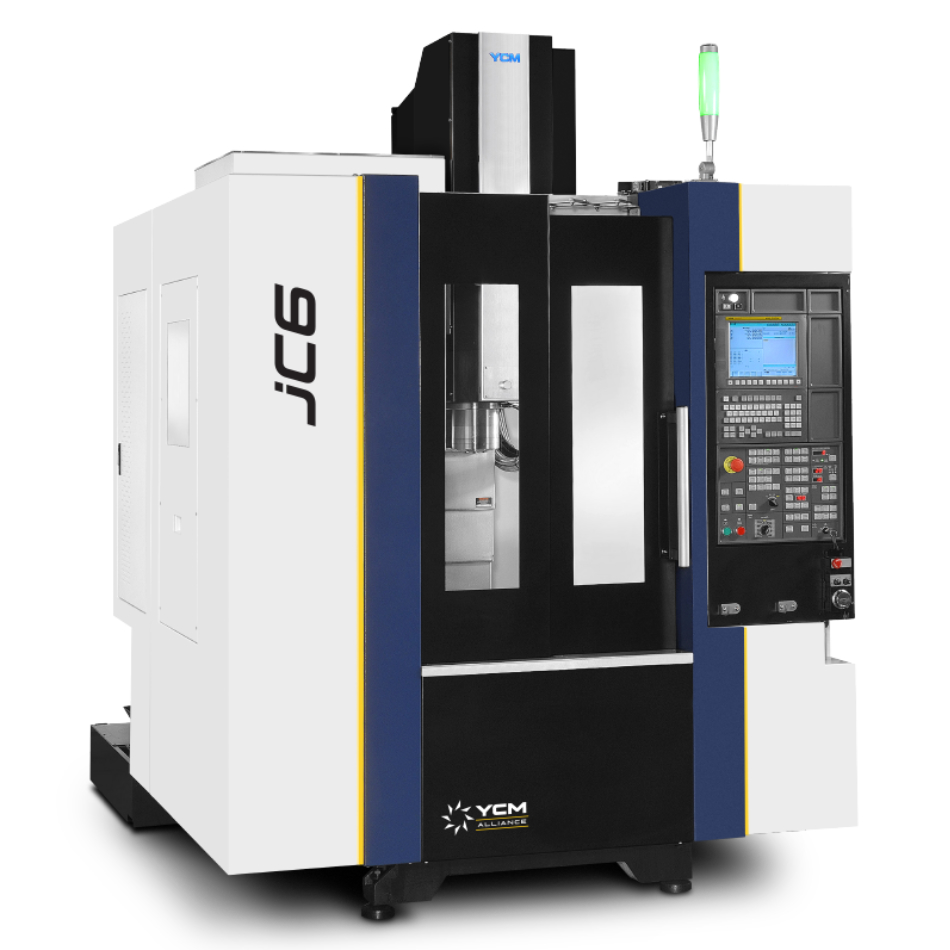

YCM jC6

The jC Series is designed with versatility in mind. This platform is ideal for the demands of shops performing general parts machining across a large spectrum of industries, including aerospace, automotive, medical, energy, and more.

Specifications:

Travels 23.6″ x 16.1″ x 17.7″
Table Size 27.6″×16.5″
Max Table Load 660 lbs
1G Acceleration
Max Cutting Feedrate 787 ipm
Rapid Feedrate 1,890 ipm
Oil Skimmer
Coolant shower for efficient chip removal
Circular Coolant Nozzle
Cutting Air Blast
Spindle Chiller
CTS Prep
24 Tool ATC
Machine Weight 6,614 lbs

Control

Fanuc MXP200FB+ Control
AICC II+, high precision, and high accuracy AI contour control.
Smooth tolerance control
Machining quality level adjustment function.
400 blocks of look-ahead
1ms Block processing time
Smart rigid tapping function combined with spindle capability for high-speed machining. *
