YCM jC16 50 Taper

The jC Series is designed with versatility in mind. This platform is ideal for the demands of shops performing general parts machining across a large spectrum of industries, including aerospace, automotive, medical, energy, and more.

Specifications:

  • Travels 64.1″ x 33.8″ x 29.9″
  • Table Size 68.1″ x 33.8″
  • Max Table Load 4,400 lbs
  • X/Y/Z Rapid Feedrate 945 ipm
  • Max Cutting Feedrate 394 ipm
  • CTS Prep
  • 32 Tool ATC ( Opt 40T)
  • Machine Weight 34,100 lbs
  • 6 guide blocks in the X-axis
  • 8 guide blocks in the Y-axis
  • Impressive 4,409 lb. table load capacity
  • Direct Drive motors in all axes with Absolute positioning encoders provide backlash-free positioning
  • Fanuc MXP200FB+ Control
  • AICC II+, high precision, and high accuracy AI contour control.
  • Smooth tolerance control+
  • Machining quality level adjustment function.
  • 400 blocks of look-ahead
  • 1ms Block processing time
  • Smart rigid tapping function combined with spindle capability for high-speed machining. *

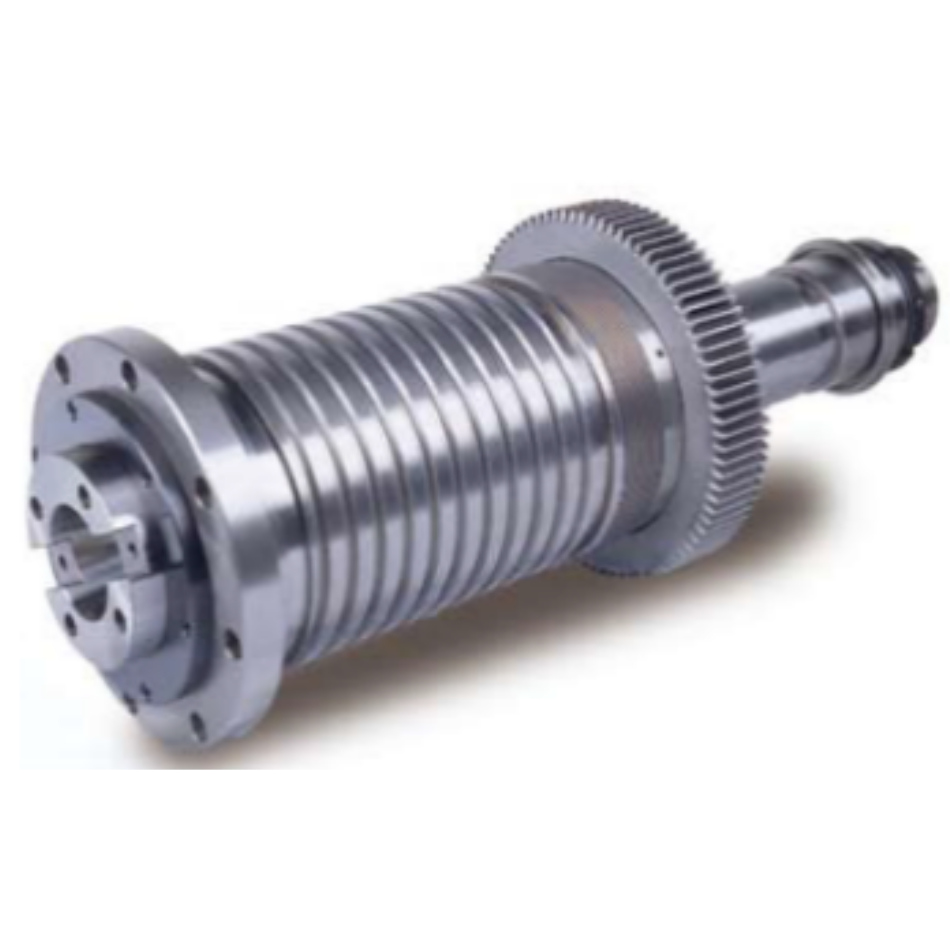

  • Heavy Duty YCM 6,000 rpm Spindle
  • 25HP BBT-50 Taper
  • Powerful 2-speed geared head
  • Spindle Chiller
  • (Opt 10,000 rpm IDD Spindle)
  • Chip Management
  • Unique Shower Coolant System for efficient chip removal.
  • Four-Augers Combined with Rear Chip Discharge Scraper Type Conveyor

YCM jC16 (NXV1680B)
