YCM jC13
The jC Series is designed with versatility in mind. This platform is ideal for the demands of shops performing general parts machining across a large spectrum of industries, including aerospace, automotive, medical, energy, and more.
Specifications:
- Travels 52.3″ x 29.9″ x 27.5″
- Table Size 56.2″ x 29.9″
- X/Y/Z Rapid Feedrate 1,181/1,181/945 ipm
- Max Cutting Feedrate 787 ipm
- Oil Skimmer
- Coolant shower for efficient chip removal
- Circular Coolant Nozzle
- Cutting Air Blast
- CTS Prep
- Tool Magazine Capacity 30T (Opt 48 / 60)
- Machine Weight 23,100 lbs
- 6 guide blocks in the X-axis axis
- 8 guide blocks in the Y-axis
- Impressive 3,300 lb. table load capacity
- Direct Drive motors on all axes
- Absolute positioning encoders provide backlash-free positioning
- Fanuc MXP200FB+ Control
- AICC II+, high precision, and high accuracy AI contour control.
- Smooth tolerance control+
- Machining quality level adjustment function.
- 400 blocks of look-ahead
- 1ms Block processing time
- Smart rigid tapping function combined with spindle capability for high-speed machining. *

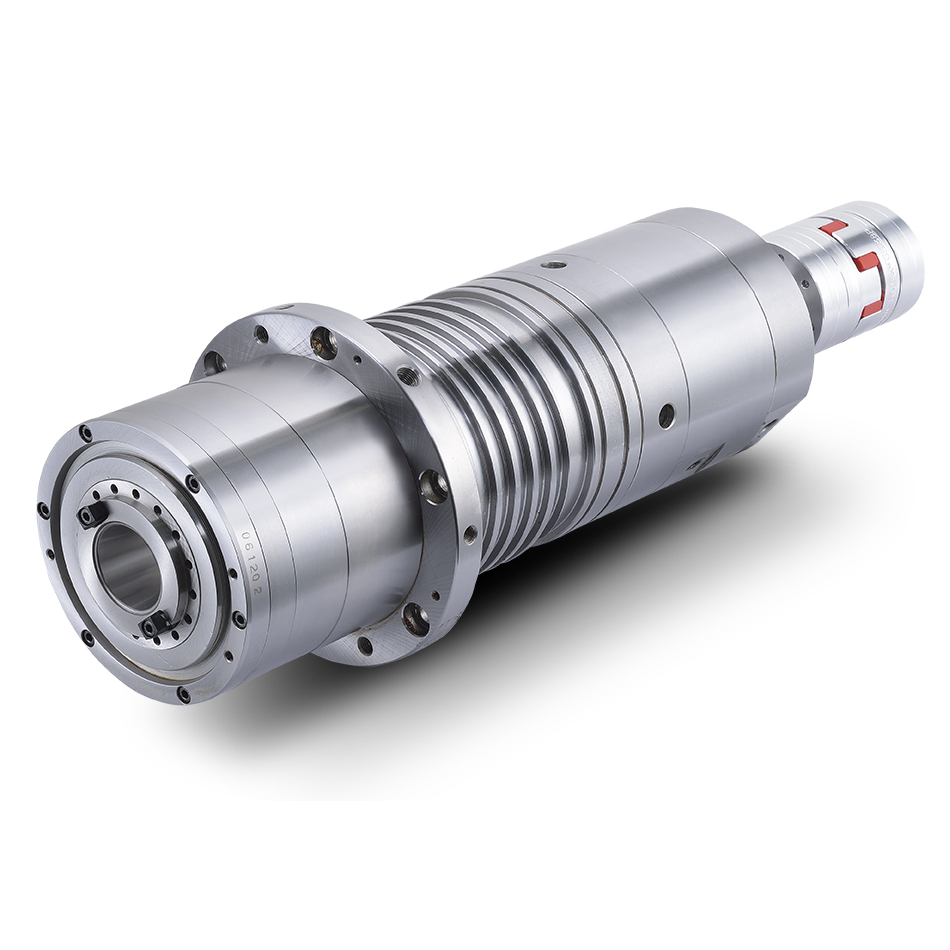

- YCM High precision IDD 12,000 rpm spindle
- 40HP, BBT-40 Taper
- Spindle Chiller
- (Opt 15,000 rpm)
- Chip Management
- Unique Shower Coolant System for efficient chip removal.
- 5 Chip Augers – 4 Y-axial 1 X-axial
