YCM jc10E High-Efficiency Vertical Machining Center
Stable, Reliable, and More Affordable Than Ever!
The jc10E is a general-purpose high-efficiency vertical machining center. Loaded with standard features like a 10,000 rpm spindle, spindle chiller, high-speed machining, chip auger, and an oil skimmer just to name a few.
Specifications:
- Table Size 44″ X 20.47″
- Travels 40.16″ x 20.47″ x 21.26″
- Max Table Load 1,102 lbs
- 10,000 RPM, 20HP, BBT-40 Taper ( Dual Contact Spindle)
- 1,417/ 1,417/1,260 IPM Rapids
- 787 IPM Feedrate
- Fanuc MXP200FA+ Control
- AICC II+, high precision, and high accuracy AI contour control
- 200 block look-ahead
- Smart rigid tapping
- Spindle Chiller
- Oil Skimmer
- Chip Auger
- 24 Tool Magazine
- Machine Weight 11,795 LBS
Download the YCM jc10E Brochure

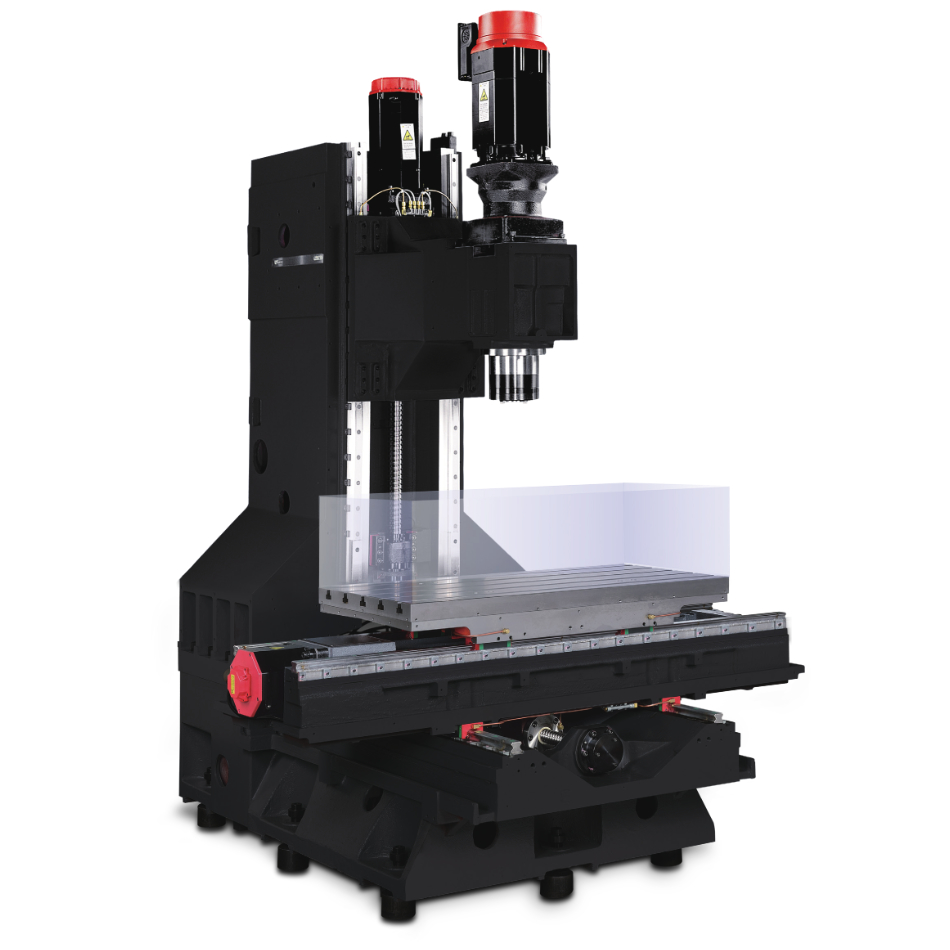

Travel / X 40.16″ / Y 20.47″ / Z 21.26″

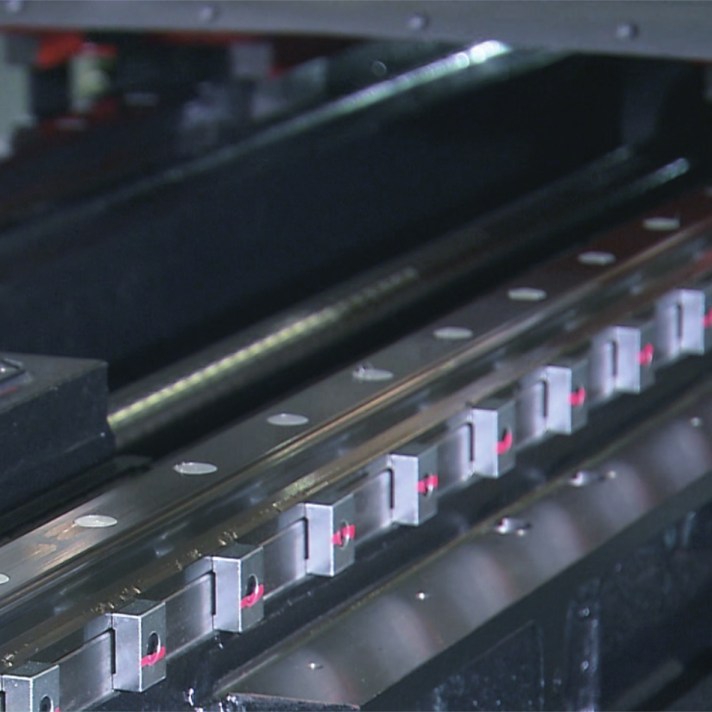

High rigidity ball type guideways on X/Y/Z axes

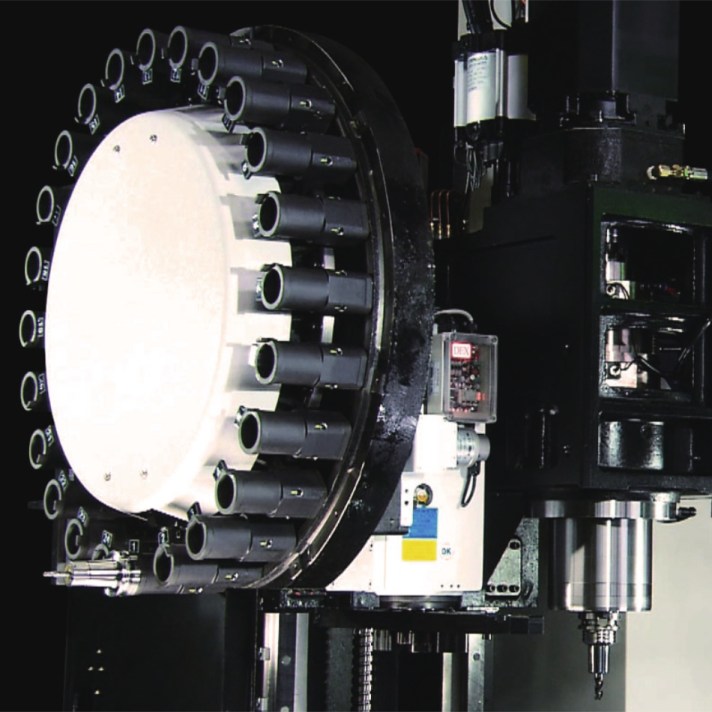

24 Tool disk type tool magazine, Tool to Tool 1.8 sec
High-precision ball screws on the X/Y/Z axes

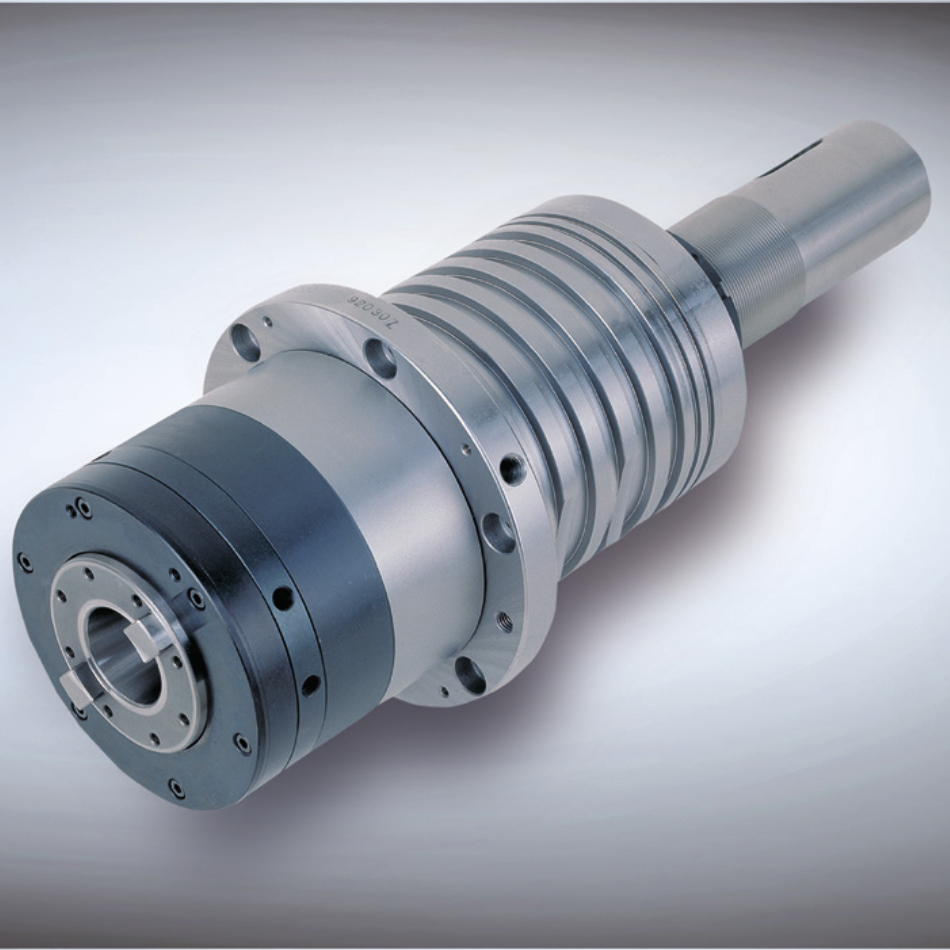

20 HP, BBT40, 10,000 rpm spindle

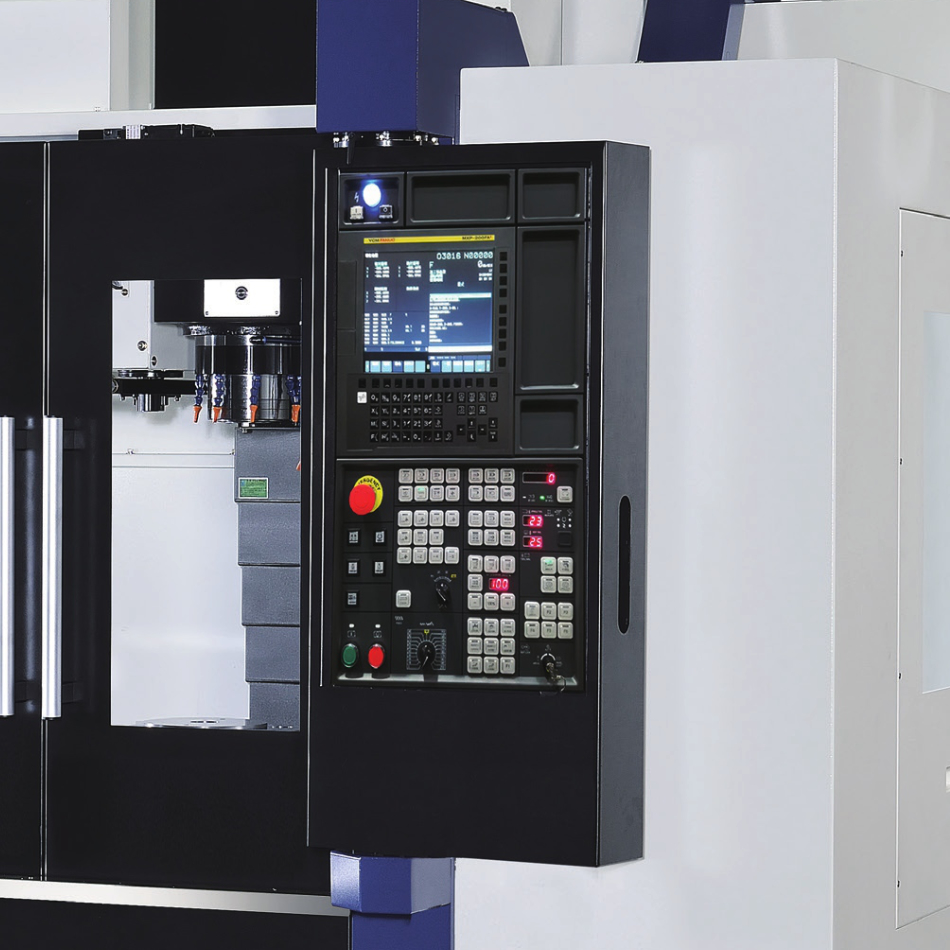

Fanuc MXP200FA+ Control, 10.4″ LCD screen

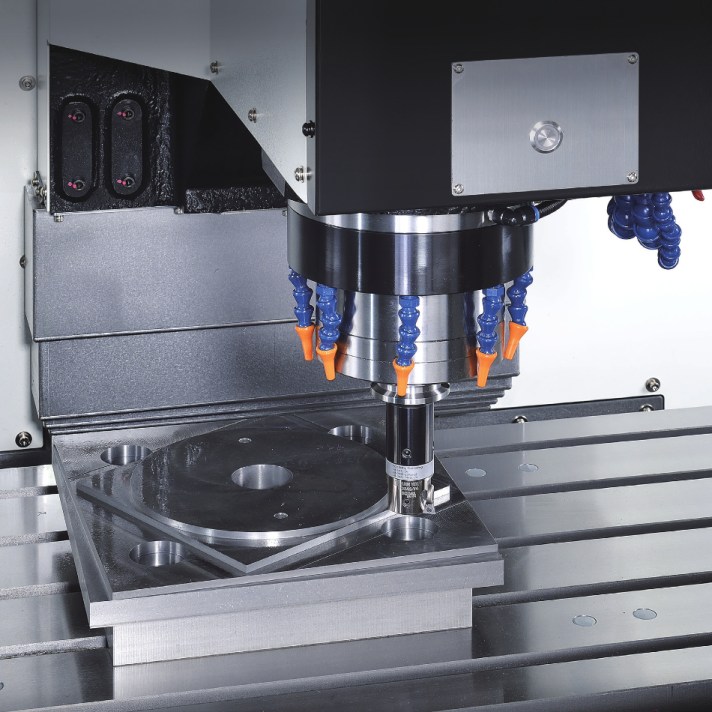

Circular Coolant Nuzzle
