YCM jC10

The jC Series is designed with versatility in mind. This platform is ideal for the demands of shops performing general parts machining across a large spectrum of industries, including aerospace, automotive, medical, energy, and more.

Specifications:

  • Travels 40.1″ x 20.4″ x21.2″
  • Table Size 44″ x 20.4″
  • Max Table Load 1,100 lbs
  • 12,000 rpm YCM In-house IDD Spindle (Opt 15,000)
  • 25HP BBT-40 Taper
  • Dual Contact Spindle
  • Max Cutting Feedrate 787 ipm
  • X/Y/Z Rapid Feedrate 1,890/1,890/1,260 ipm
  • Fanuc MXP200FB+ Control
  • Triple Chip Augers
  • Coolant shower for efficient chip removal
  • Oil Skimmer
  • Coolant shower for efficient chip removal
  • Circular Coolant Nozzle
  • Cutting Air Blast
  • Spindle Chiller
  • CTS Prep
  • 30 Tool ATC (Opt 40)
  • Machine Weight 11,770 lbs

High precision pre-tensioned ballscrews

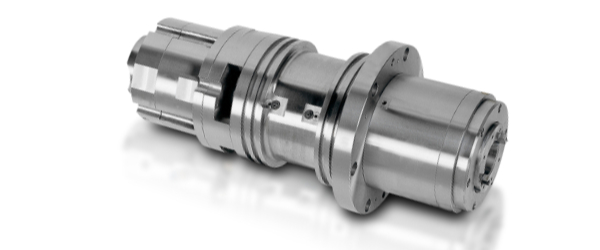

High precision 12,000 rpm spindle with ceramic bearing (Opt 15,000 rpm)

Coolant shower for efficient chip removal.

YCM jC10 (NXV1020A)

Contact J&M Precision Products for Additional Information
