YCM C7

The C Series vertical machining centers deliver high-caliber performance providing superb cutting ability with reduced vibration. The C Series is built with an extra large delta-shaped casting at the base of the machine’s column to ensure the highest level of stability during high-speed movement. Every machine tool is built and handcrafted for rigidity, thermal stability, and repeatability. The C Series produces consistent high-quality results from the first part to the last.

Specifications:

  • Travels 25.98″ X 20.08″ X 22.05″
  • Table Size 33.07″ x 22.05″
  • Max. Table Load 1,102 lbs
  • Double-nut Ball Screws
  • Linear Scales on all axes
  • 1G Acceleration in all Axes
  • X/Y/Z Rapid Feedrate 1,969/1,969/1,890 ipm
  • Max. Cutting Feedrate 787 ipm
  • Rigid Tapping
  • Fanuc MXP200FB+ Control
  • AICC II+, high precision, and high accuracy AI contour control
  • Smooth tolerance control+
  • 400 blocks of look-ahead
  • Cutting Air Blast
  • Dual-Chip Augers / Chip Conveyor
  • Unique Shower Coolant System
  • Oil Skimmer
  • 30 Tool ATC (Opt 40T)
  • Machine Weight 14,300 LBS

Build

  • High Quality, Rugged MEEHANITE™ Castings
  • Precision Hand Scraped Joints
  • High Rigidity Structural Design with extra-large delta machine column.

YCM In-house IDD Spindle

  • High-performance 15,000 rpm IDD Spindle, 40HP, BBT-40 Taper, Dual Contact
  • Spindle Thermal Compensation
  • Spindle Chiller

Guideways

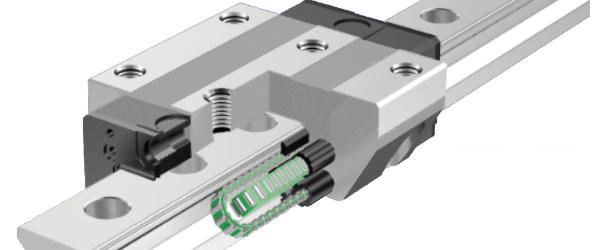

  • High Load Capacity 45mm Roller Guideways in all Axes

Contact J&M Precision Products for Additional Information
