YCM C15
The C Series vertical machining centers deliver high-caliber performance providing superb cutting ability with reduced vibration. The C Series is built with an extra large delta-shaped casting at the base of the machine’s column to ensure the highest level of stability during high-speed movement. Every machine tool is built and handcrafted for rigidity, thermal stability, and repeatability. The C Series produces consistent high-quality results from the first part to the last.
Specifications:
- Travels 60.24″ x 25.5″ x 24″
- Table Size 64.17″ x 25.59″
- Max. Table Load 3,307 lbs
- X/Y/Z Rapid Feedrate 1,890 ipm
- Max Cutting Feedrate 787 ipm
- 1G Acceleration in all axes
- Linear Scales on all axes
- 45mm Roller Type Guideways
- Double-nut 45mm Ball Screws
- Fanuc MXP200FB+ Control
- AICC II+, high precision, and high accuracy AI contour control
- Smooth tolerance control+
- 400 blocks of look-ahead
- Smart rigid tapping
- Quad-chip Augers / Chip Conveyor
- CTS Prep w/ Rotary Union
- 30 Tool ATC (Opt 48T/60T)
- Machine Weight 22,050 LBS
Build
- High Quality, Rugged MEEHANITE™ Castings
- Precision Hand Scraped Joints
- High-rigidity structural design with a large delta machine column.
- 45 mm roller guideways and large-diameter ball screws.
- 6 guide blocks in the X-axis
- 8 guide blocks in the Y-axis
YCM In-House Spindle
- High-performance 15,000 rpm IDD Spindle, 40HP, BBT-40 Taper, Dual Contact
- Spindle Thermal Compensation
- Spindle Chiller
Chip Management

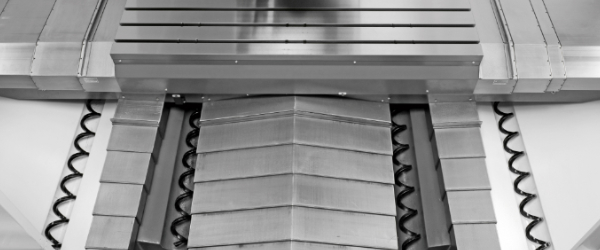

- Dual-chip augers
- Chip Conveyor
- Unique Shower Coolant System
