YCM B7G (Graphite Mill)

The B series is designed to provide superior accuracy, precision, and performance and is intended but not limited to die-mold applications. The B series is built with a box-shaped double-column structure which ensures the highest level of stability during high-speed movement. Every machine is built and handcrafted for rigidity, thermal stability, and repeatability. The B series produces consistent high-quality results from the first part to the last.

Specifications:

Table Size 31.5″ x 20.08″
Travels 25.98” x 20.08” x 15.8”
Max Table Load 1,102 lbs
Highly rigid roller-type blocks and guideways
1G Acceleration in all Axes
787 IPM Rapids
787 IPM Feedrate
Linear glass scales on all axes
Air blow nozzles direct graphite to a large vacuum opening
Oil-mist Collector
Rigid Tapping
Required Floor Space (W x D x H) 94” x 95” x 94”
Machine Weight 17,637 lbs

Graphite Package – Dustproff Features

Way covers (X/Y/Z)
Roller blocks and guiderails
Ball-screws
30,000 rpm spindle (HSK E40) with grease lubrication system
Isolated ATC

Guideways

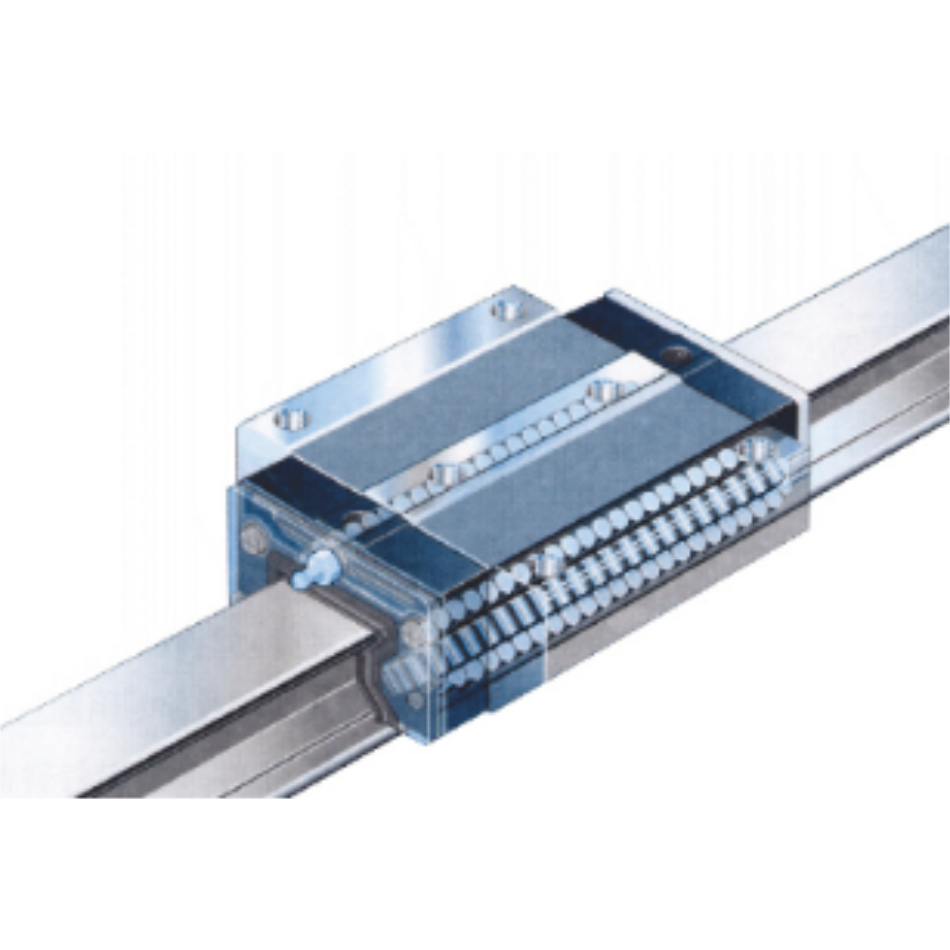

High Load Capacity Roller Guideways in all Axes. 35mm in the X, Y & Z-Axes.

ATC

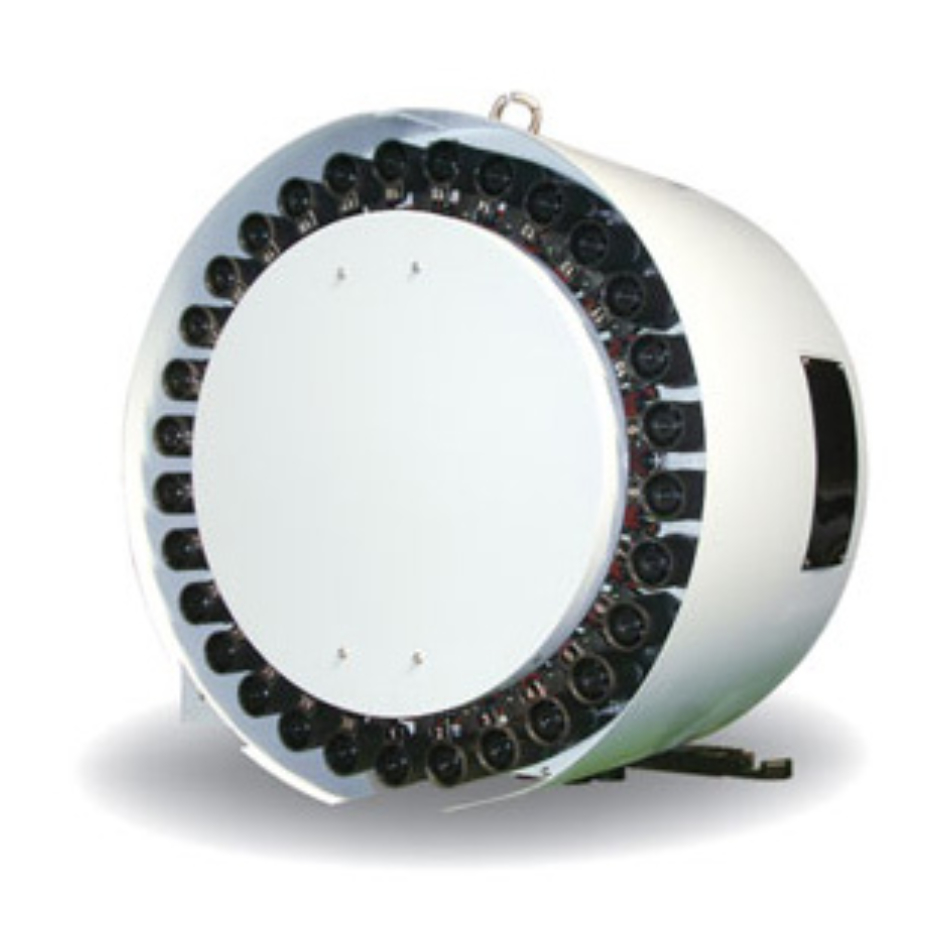

Isolated 24 Tool CAM Type ATC provides fast, reliable 1.8 sec. Tool to Tool Time.

Build

High Quality, Rugged MEEHANITE™ Castings
Precision Hand Scraped Joints
High rigidity double column structure design.

Spindle

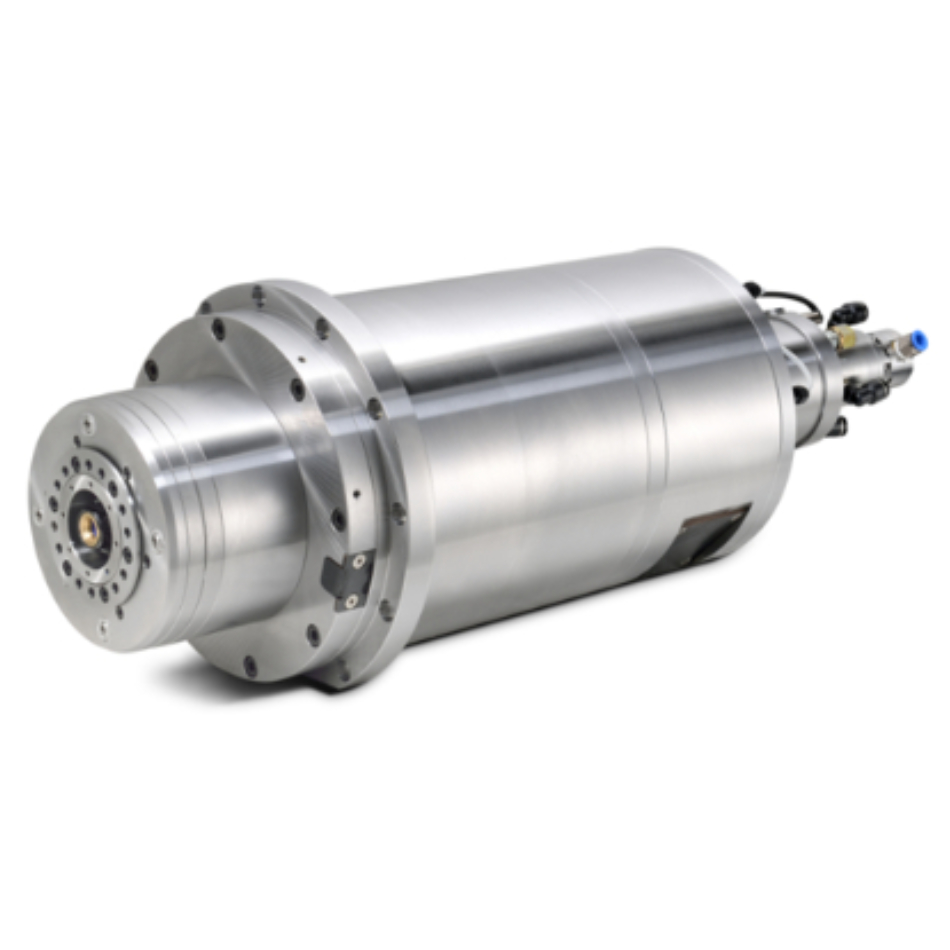

High Precision 30,000 rpm Spindle, 30HP, HSK40E.
Grease lubrication
Spindle Thermal compensation.

Control

Fanuc MXP-300FC+ Control
15″ LCD screen
AICC II+, high precision, and high accuracy AI contour control.
Smooth tolerance control+
0.4ms Block Processing Time
600 Block Look Ahead

Thermal Control

Cooling system on bearing housing, motor seat, and ballscrews, plus optical scale to achieve high-speed high precision axial movements.
Equipped with an adaptive spindle oil cooling control system to achieve high stability and thermal accuracy.
