YCM B7DM

The B series is designed to provide superior accuracy, precision, and performance and is intended but not limited to die-mold applications. The B series is built with a box-shaped double-column structure which ensures the highest level of stability during high-speed movement. Every machine is built and handcrafted for rigidity, thermal stability, and repeatability. The B series produces consistent high-quality results from the first part to the last.

Specifications:

Table Size 31.5″ x 20.08″
Travels 25.98” x 20.08” x 15.8”
Max Table Load 1,102 lbs
Highly rigid roller-type blocks and guideways
1G Acceleration in all Axes
787 IPM Rapids
787 IPM Feedrate
Linear glass scales on all axes
Precision Hand Scraped Joints
Oil Skimmer
Dual Screw Type Chip Augers
Circular Coolant Nozzle
Cutting Air Blast
Oil-mist Collector
Rigid Tapping
24 Tool Magazine
Required Floor Space (W x D x H) 94” x 95” x 94”
Machine Weight 17,637 LBS

Automotive Light Mold B7DM (NFP66A)

Guideways

High Load Capacity Roller Guideways in all Axes. 35mm in the X, Y & Z-Axes.

ATC

24 Tool CAM Type Automatic Tool Changer – provides fast, reliable 1.8 sec. Tool to Tool Time.

Build

High Quality, Rugged MEEHANITE™ Castings
Precision Hand Scraped Joints
High rigidity double column structure design.

Spindle

High Precision 24,000 rpm Spindle, 30HP, HSK40E.
Spindle Thermal compensation, control deviation under 5 μm.

Control

Fanuc MXP-300FC+ Control
15″ LCD screen
AICC II+, high precision, and high accuracy AI contour control.
Smooth tolerance control+
0.4ms Block Processing Time
600 Block Look Ahead

Thermal Control

Cooling system on bearing housing, motor seat, and ballscrews, plus optical scale to achieve high-speed high precision axial movements.
Equipped with an adaptive spindle oil cooling control system to achieve high stability and thermal accuracy.

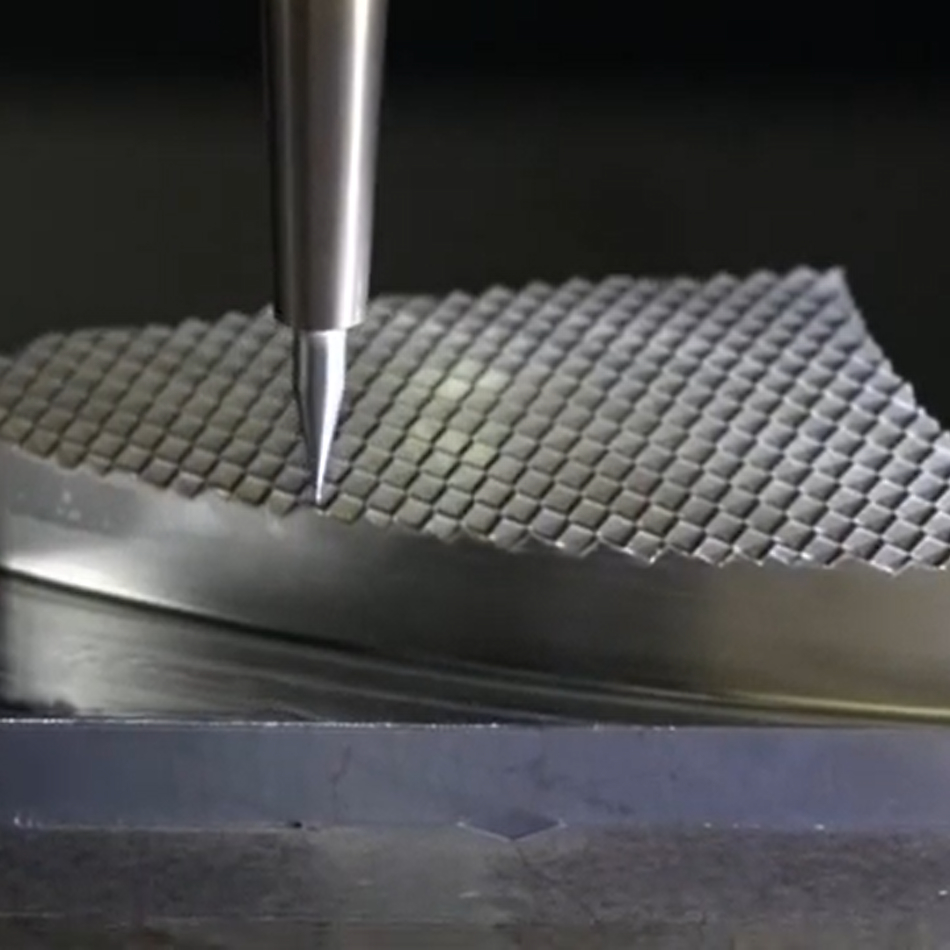

Automotive Light Mold
