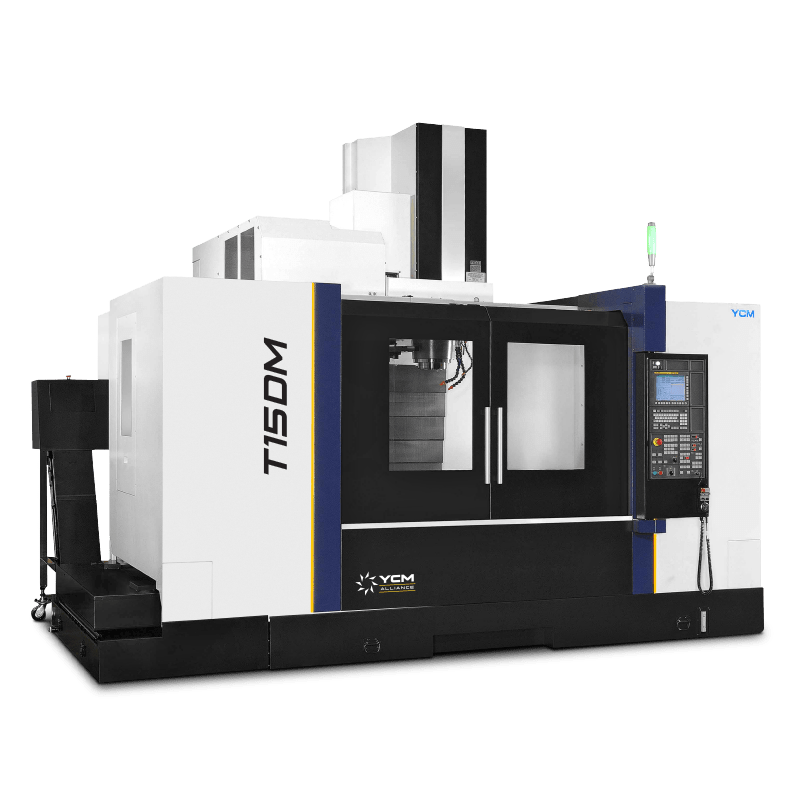

YCM T15DM High-Efficiency T-base Vertical Machining Center
High-speed ∙ High Power ∙ High Rigidity
Specifications:
- Travels 60″ x 30″ x 27.6″
- Roller linear guideways
- Preloaded high-precision ball screws
- 10,000 RPM IDD Spindle
- 30HP CT 50
- Dual Contact Spindle
- OPT – 15,000 RPM, 40HP, HSK100A
- 1G Acceleration in all Axes
- X/Y/Z Rapids 1,181/1,181/945 IPM
- Max. Cutting Feedrate 394 ipm
- Scales (XYZ Axis)
- Fanuc MXP200FB+ Control
- AICC II High-Speed machining, 1.0ms Block processing time
- Spindle Chiller
- CTS Prep
- 32 Tool ATC
- Max. Table Load 4,409 lbs
- Machine Weight 34,172 lbs

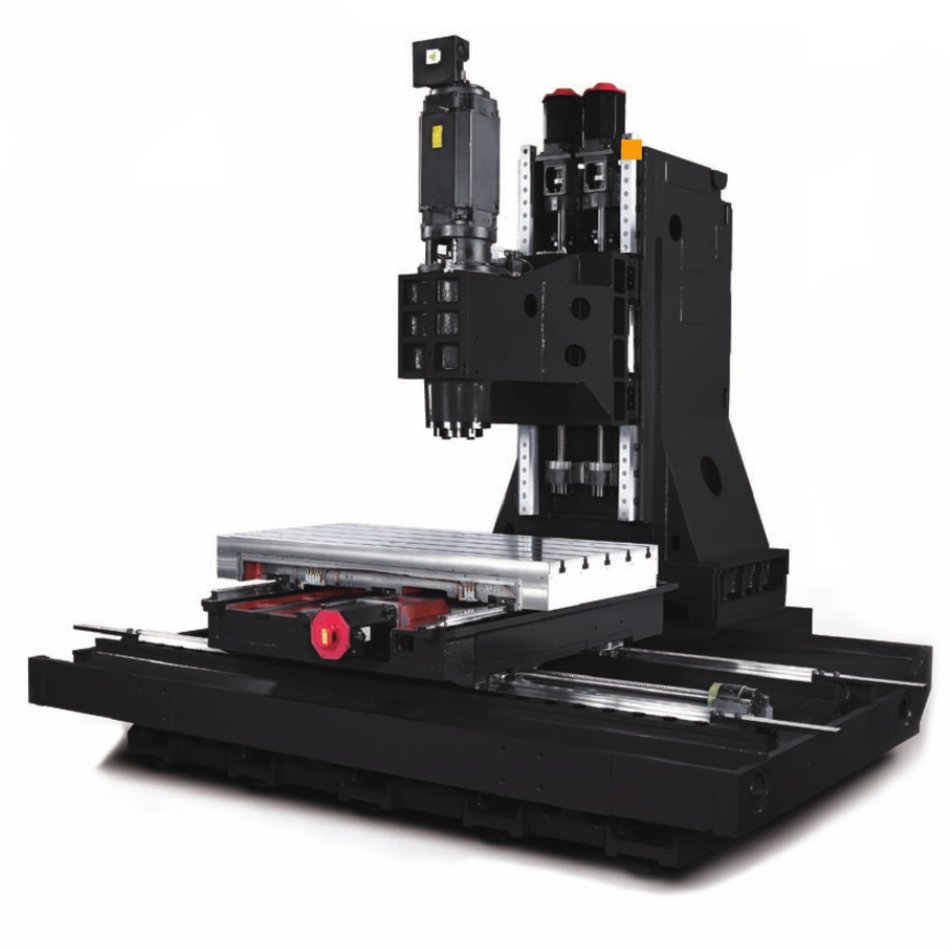

- Unique T-base structure
- Overhang-free table movement
- X-axis with 6 guideway blocks fully supports the saddle and efficiently releases loading from the table.
- Y-axis is designed with 3 guideways maintaining exceptional dynamic accuracy.
- All axes are equipped with roller-type linear guideways.
- Dual drive on the Z-axis
