The YCM D212DM double-column vertical machining center delivers high-caliber performance providing superb cutting ability with reduced vibration. Ideal for higher accuracy, precision, and speed for Die-Mold, Aerospace, and General Parts machining.


  • Travels 78.7″ x 47.24″ x 30″
  • Distance Between Columns 52.76″
  • Table Size 78.74″ x 43.31″
  • Max Table Load 8,818 lbs
  • Roller type guideways on the X/Y axis
  • Z-axis box guideway
  • Scales on all axes
  • X/Y/Z Rapid Feedrate 787/787/591 ipm
  • Max Cutting Feedrate 394 ipm
  • Dual Augers
  • Chip Conveyor
  • Oil Skimmer
  • Cutting Air Blast
  • 32 Tool ATC (Opt 40/60)
  • Machine Weight 41,887 lbs

Step Bridge Design

YCM manufactures this key component to place the roller guideways in both the horizontal and vertical face of the Y-axis plane. More advanced cutting dynamics are achieved by evenly distributing the saddle weight and machining forces. Results include better accuracy and blends during advanced machining in the X, Y, and Z-axis. This design also helps to improve tool life based on the machining application.

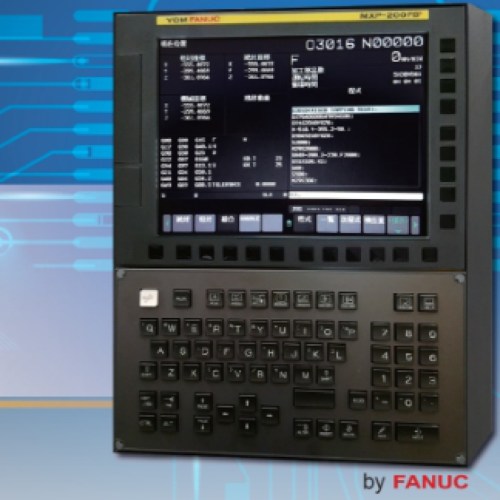

  • Fanuc MXP200FB+
  • 1.0ms Block Processing Time
  • 400 Block Look Ahead
  • AICC II High-Speed High Accuracy with Manual / Auto Switching on/off Machining
  • JERK Control Function
  • High Rigidity Tapping
  • Helical Interpolation

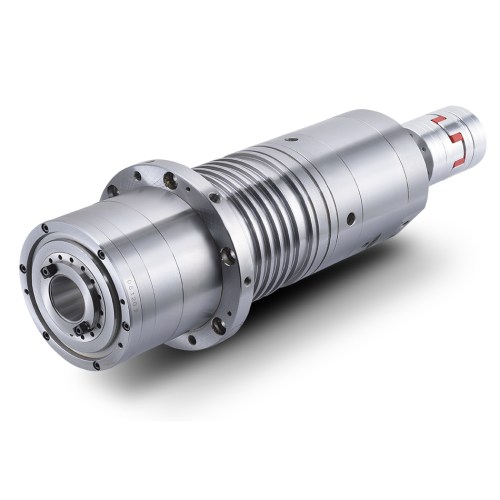

Spindle Options

  • High-performance YCM In-House IDD Spindles
  • 10,000 rpm (30hp) BBT-50
  • 15,000 rpm (40hp) HSK100A
  • Spindle Chiller
  • Spindle Thermal Compensation
