YCM jD Series

The jD Series 3-axis double column vertical machining centers deliver top-end quality and excellent value. The platform is designed with versatility in mind and is ideal for General Parts machining across a wide spectrum of industries including Aerospace, Automotive, Energy, and more.

Specifications:

Full Chip Enclosure
Sizes Range from
- 86.61” / 62.99” / 30” – 165.35” / 86.61” / 30″
Linear Scales on all axes
6,000 rpm, Gear Box, 35HP /10,000 rpm, 30HP
Dual Contact CAT-50 / BBT-50
Rapid Feedrate 591- 787 ipm
Max Cutting Feedrate 394 ipm
Fanuc MXP200FB+ Control
Dual Augers
Chip Conveyor
Oil Skimmer
Cutting Air Blast
ATC 40 – 120 Tools

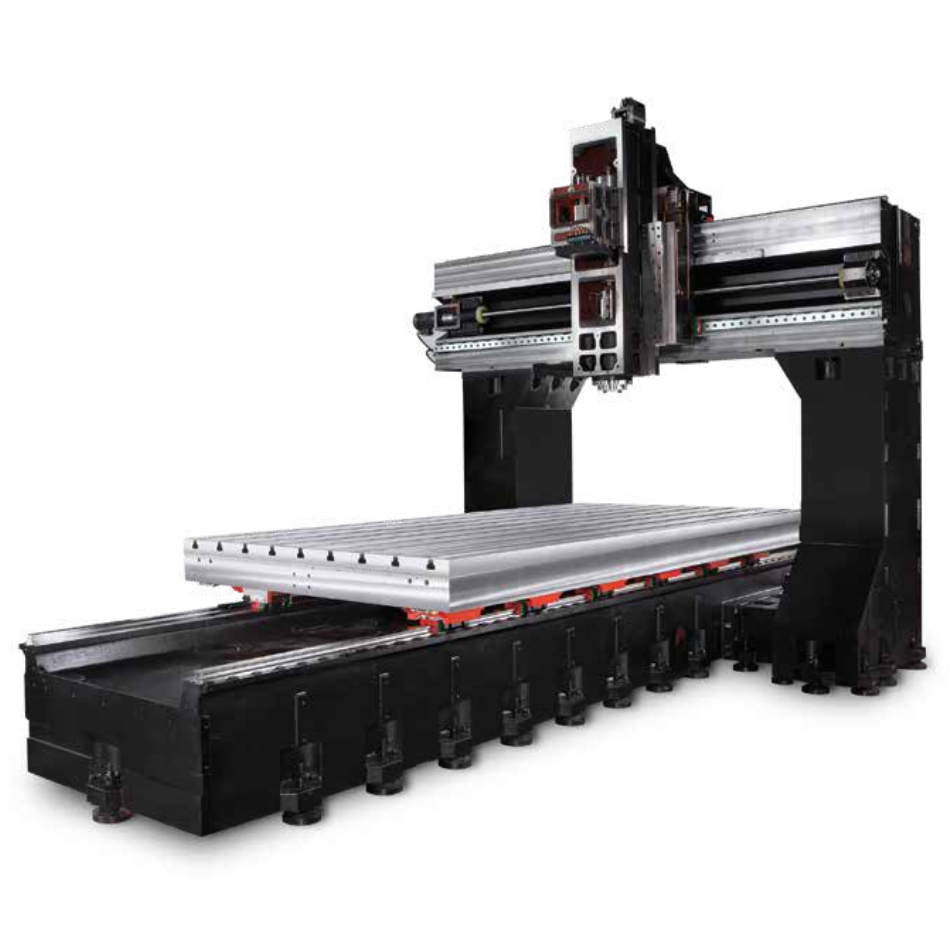

Highly Rigid Structural Design

One piece double column bridge casting or three-piece which includes two columns and one bridge casting based on machine model.
One-piece base casting.
Wide-span saddle casting fully supports the Z-axis head in any machining direction.
Y-axis linear guideways have a wide span which
provides greater support.
Rigid Z-axis head casting is designed to avoid overhang, increase stiffness, and reduce vibration.
Dual chip augers with conveyors provide efficient chip removal.

Spindle

YCM designs, manufactures, and tests every spindle to perfection to ensure optimum performance and longevity.
6,000 rpm Spindle, Gear Box, 35HP
10,000 rpm IDD Spindle, 30HP, Spindle Thermal Compensation
Dual Contact CAT-50 / BBT-50

Guideways

Highly-Rigid Linear Motion Guideways
Linear X/Y-axis and box guideway Z-axis.
Roller-type blocks and guiderails.
Fast, smooth, accurate.
High load capacity.

Control

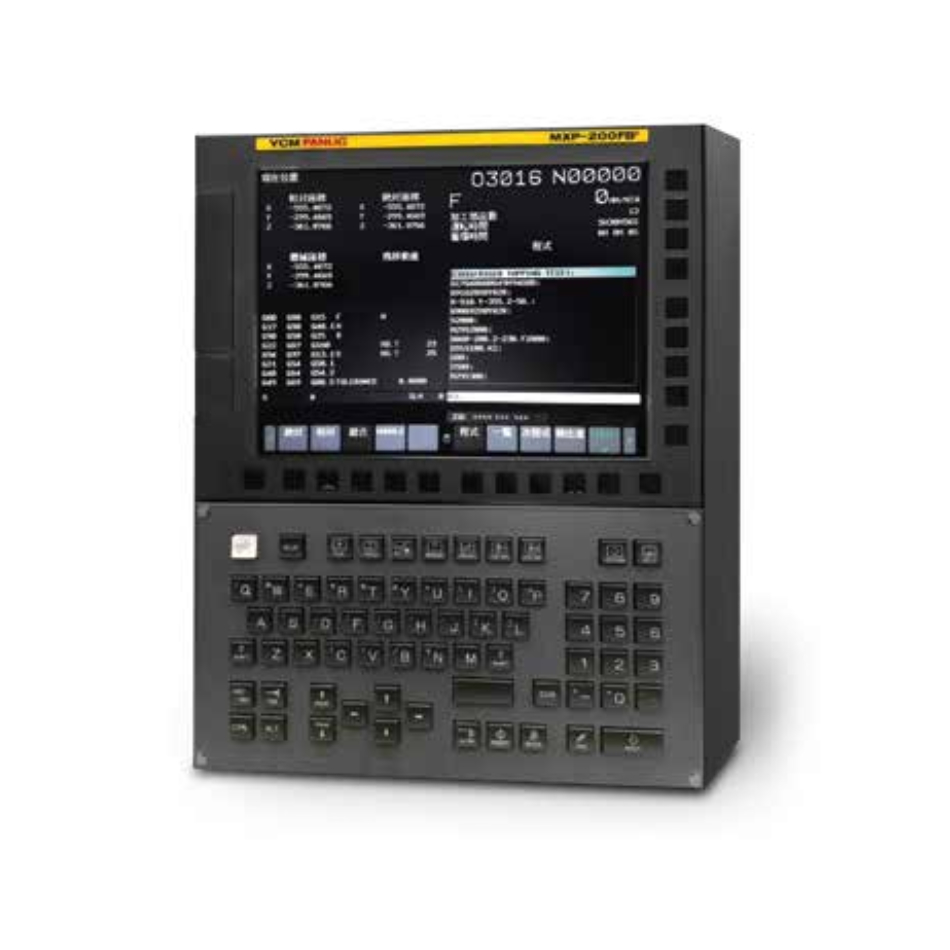

Fanuc MXP200FB+ Control
AICC II+, high precision, and high accuracy AI contour control.
Smooth tolerance control+
Machining quality level adjustment function.
400 blocks of look-ahead
1ms Block processing time
Smart rigid tapping function combined with spindle capability for high-speed machining. *

YCM jD422

165.35” / 86.61” / 30”
