YCM RX65

High-Performance 5-axis Vertical Machining Center

The YCM RX65 5-axis vertical machining center provides excellent cutting performance and high accuracy for complex parts requiring simultaneous 5-axis machining. Designed to reduce part handling, setup, and overall lead time, while improving part quality, precision, and surface finish of complex shapes and contours required for multiple industries such as job shop, medical, aerospace, and die & mold.

Specifications:

  • Travels 24.41″ X 20.47″ X 18.11″
  • Travels A-axis 160˚ (+110˚/ -50˚) C-axis 360˚
  • Table ø25.59″
  • Max. Workpiece Dimensions ø25.6″x18″
  • 12,000 RPM IDD Spindle (Opt 15,000RPM)
  • 30HP, BBT-40 Taper, Dual Contact
  • Spindle Chiller
  • Rapid Feedrate X/Y/Z 1,417 ipm
  • Max Cutting Feedrate 787 ipm
  • Chip Conveyor
  • 40 Tool Chain type (Opt 60/120/180)
  • Machine Weight 22,046 LBS

Build

  • High Quality, Rugged MEEHANITE™ Castings
  • Precision Hand Scraped Joints
  • Massive ram and base structure ensures greater support and stability during machining
  • X/Y/Z Axis high precision roller guideways
  • X/Y/Z Axis high accuracy scales

State of the Art Trunnion Rotary Table

  • B/C-Axis Rotary Table
  • Table Size: Ø650 mm (25.59”)
  • B-Axis Travel: 160° (-50°/+110°)
  • C-Axis 360˚
  • High-precision rotary encoders.
  • Larger size tailstock support for greater rigidity and accuracy
  • Hydraulic braking system

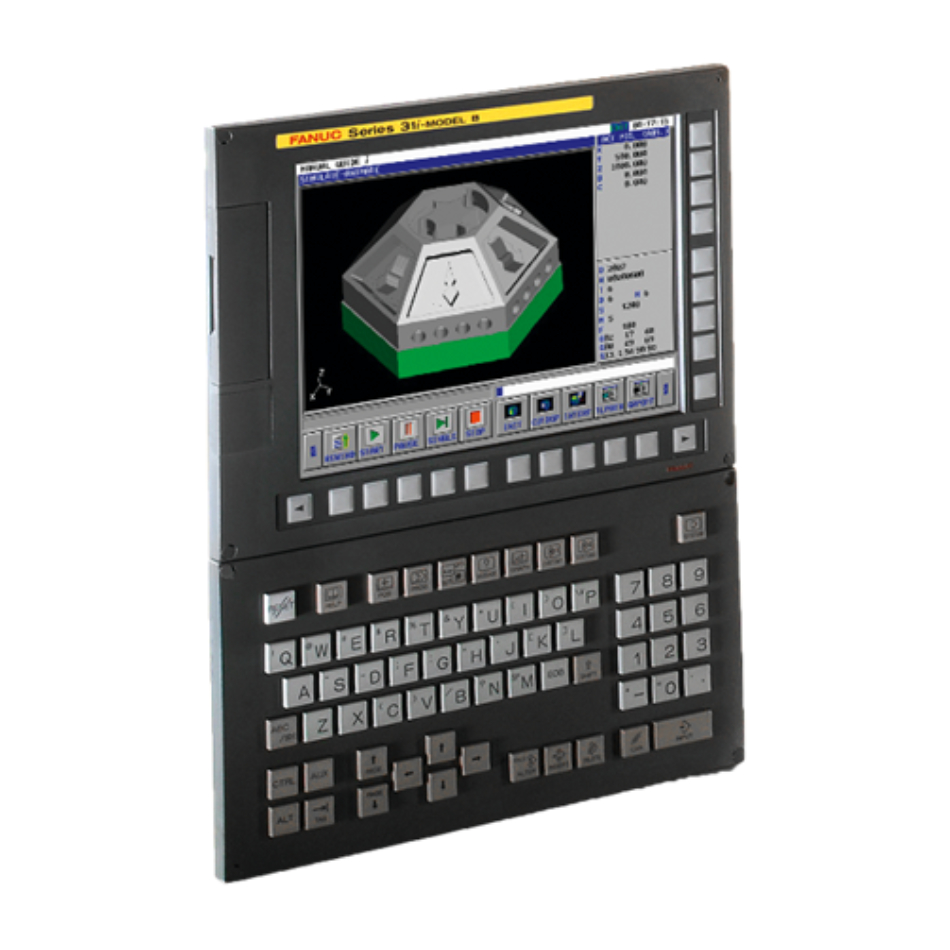

Control

  • FANUC 31iMB5+ control
  • 15″ LCD screen
  • AICC II+, high precision, and high accuracy AI contour control
  • Smooth tolerance control+
  • 0.5ms Block Processing Time
  • 600 Block Look Ahead
  • High-Speed Smooth TCP
  • 3-D rotation error compensation
  • Smart Rigid Tapping

YCM RX65 (UV 650)
