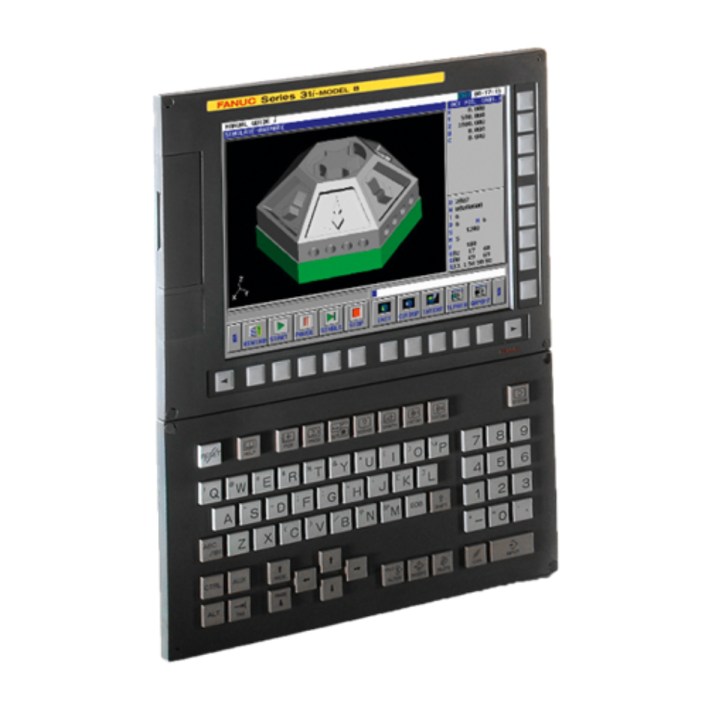

YCM CX4

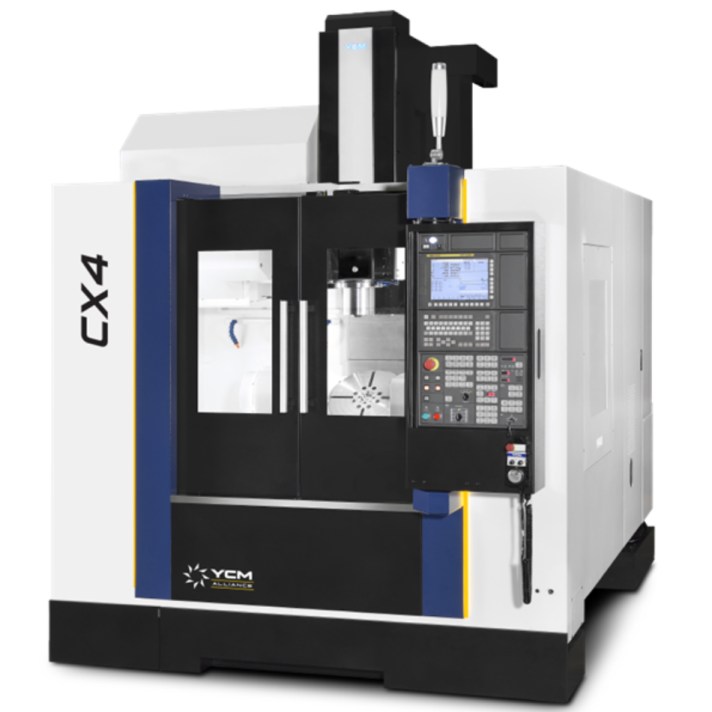

High-Performance 5-axis Vertical Machining Center

The high-performance YCM CX4 5-axis vertical machining center is designed especially for small, complex high-quality parts for aerospace, automotive, medical, job shop, and die & mold applications. From roughing to finishing, the CX4 enables manufacturers to reduce setup time and overall lead time while increasing the machining quality of complex machining processes.

Specifications:

Travels 25.6″ X 20.47″ X 18.9″
Travels A-axis 150˚ (+30˚/ -120˚) C-axis 360˚
Table ø13.8″
Max. Workpiece Dimensions ø15.8″x12.2″
Max. Table Load 440 lbs
12,000 rpm IDD Spindle (Opt 15,000 rpm)
30HP, BBT-40 Taper, Dual Contact
Spindle Chiller
CTS Prep
Rapid Feedrate X / Y / Z 1,417 ipm
Max Cutting Feedrate 787 ipm
Scales (XYZAC)
Kinematics
Unique Shower Coolant System
3 Chip Augers – 2 Y-axial 1 X-axial
Conveyor/Jorgensen
40 Tool ATC (Opt 60/90/120)
Machine Weight 13,670 lbs

Build

High Quality, Rugged MEEHANITE™ Castings
Precision Hand Scraped Joints
Extra wide column and base ensure greater support and stability during machining
Linear guideways enable fast and smooth axial movement.
Pre-tensioned ball screws
Direct drive motors achieve high torque and accurate positioning
