VM Series

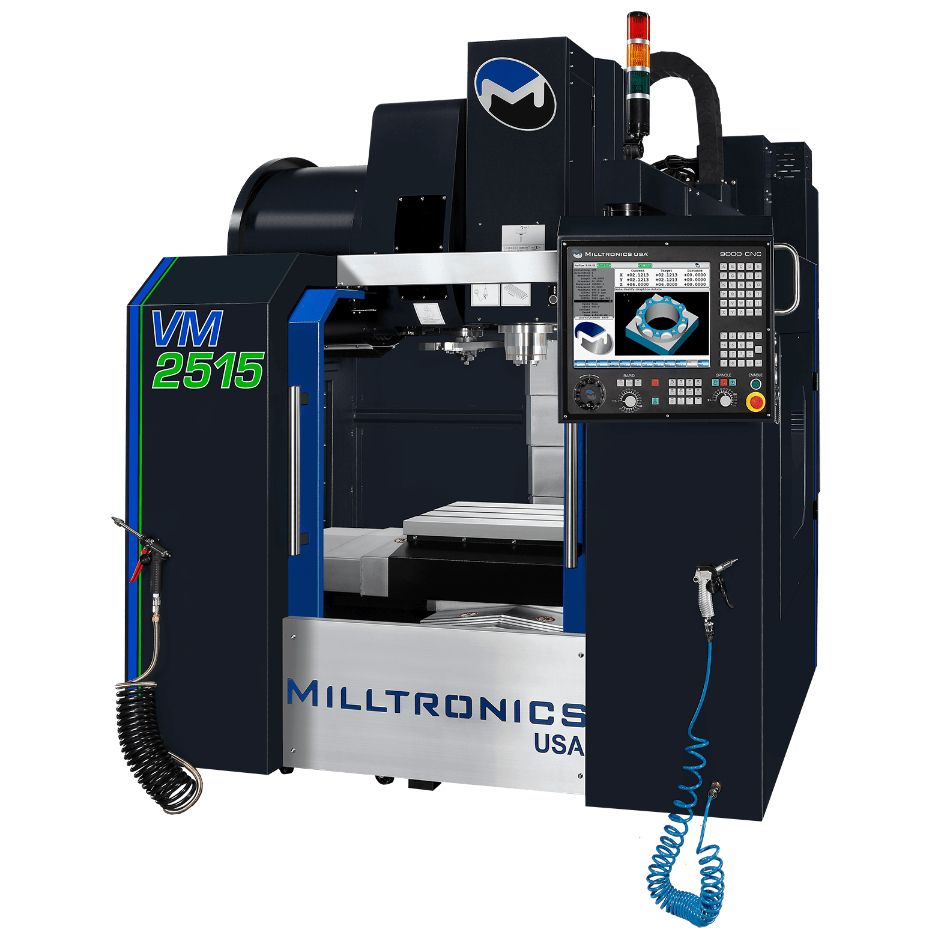

General Purpose VM Series Vertical Machining Centers

The Milltronics VM Series vertical machining centers offer a great combination of features and performance at an attractive price. The VM Series machines are belt-driven and include standard features such as full enclosures, swing-arm tool changers, 10,000 RPM BIG-PLUS® dual contact spindles, the 9000 Series control, and more.

Standard Equipment

Heavily ribbed one piece fine grain cast iron casting
Fully enclosed machine guard with side doors
30/35 mm linear way technology
Precision ground ballscrews supported at both ends
Precision ground table surface
Telescopic metal way covers
20 pocket double arm ATC
BIG-PLUS® ISO No. 40
Automatic positive displacement lubrication system
High torque AC digital servo drives
High torque closed loop vector spindle drive system
Work light (right side)
LCD hour meter
Spindle taper blow-out and tool release button
Spare “M” function with CNC “wait” channel
Programmable on/off flood coolant system
Rigid tap
Edit key lockout switch
Spindle load meter
Feedrate and spindle speed overrides
Spindle air purge
End of cycle light
One year warranty
9000 Series Control

Download the Brochure for Additional Information

download

9000 SERIES CONTROL

Intuitive yet Powerful

With its conversational programming, on-screen help, intuitive menus, color graphics, and prompted tool settings, the 9000 CNC helps new operators get up to speed quickly. The 9000 CNC makes it the one machine in the shop that everyone wants to operate.

15″ color LCD touchscreen display
Powerful conversational programming
ISO based G&M Code programming
High-speed motion control
3,000 blocks per second
Auto DXF file import
3D part and wireframe toolpath graphics
Solid Model Graphic Display

Run parts programmed conversationally or toolpaths generated by a CAM system.
