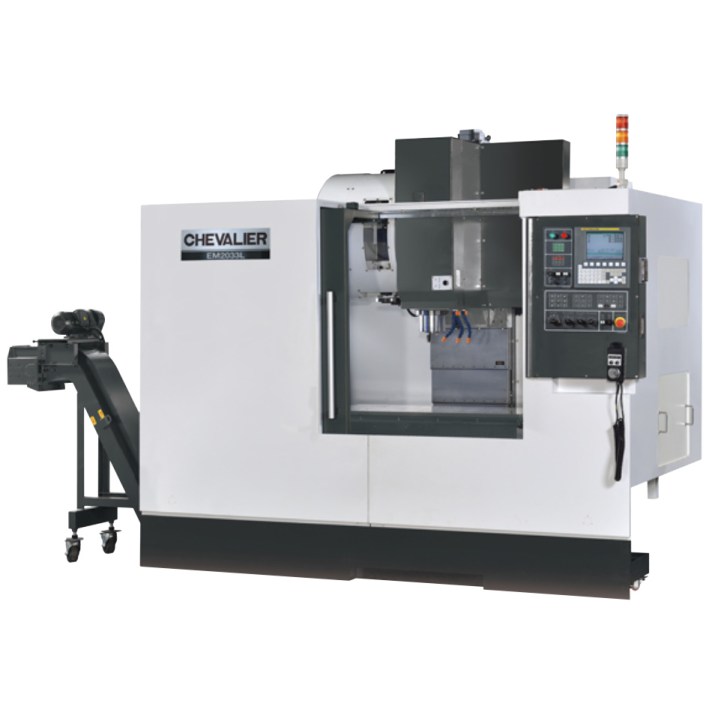

Chevalier EM2033L High Speed VMC

Chevaliers EM series VMCs are designed for high precision, productivity, and high-speed machining in different industries, such as aerospace, mold, automotive industries, and job shops. Features include high-speed linear ways on all axes that ensure fast linear movement during cutting. All Meehanite cast iron construction with ribbed frame and wide stance machine base provides excellent support and damping character. The pre-tensioned class C3, ball screws are used in all axes. All servo motors are direct coupled to ball screws. It increases the sensitivity of movement while reducing the backlash dramatically.


  • Travels 33.5″ X 20.9″ X 20.1″
  • Table Size 39.4″ x 20.1″
  • 20HP Spindle
  • Big Plus Spindle #40
  • 10,000 RPM
  • 1,417 / 1,417 / 944 ipm Rapids
  • 393 ipm Feedrate
  • Fanuc 0i-M Control
  • 24 Tool Magazine
  • Floor space (W x D x H) 92.9″ x 118.9″ x 102.4″
  • Machine Weight 12,700 LBS

Contact J&M Precision Products for Additional Information
