Chevalier EM Series High Speed VMC’s

Chevaliers EM series VMCs are designed for high precision, productivity, and high speed machining in different industries, such as aerospace, mold, automotive industries, and job shops. Features include high-speed linear ways on all axes that ensure fast linear movement during cutting. All Meehanite cast iron construction with ribbed frame and wide stance machine base provides excellent support and damping character. The pre-tensioned class C3, ball screws are used in all axes. All servo motors are direct coupled to ball screws. It increases the sensitivity of movement while reducing backlash dramatically.

There is nothing sacrificed or compromised in the new EM Series. The major parts of the machine are constructed of high-quality Meehanite cast iron, which offers superior stability. The machine’s base is supported by full travel, enabling it to be suitable for high-speed machining. All three axes are built with high-speed linear ways providing smooth quick movement without delay.

Chevalier EM1620L

Travel 20.5″ X 14.5″

Chevalier EM2033L

Travel 33.5″ X 20.9″

Chevalier EM2033L vertical machining center

Chevalier EM2040L

Travel 40.2″ X 20.9″

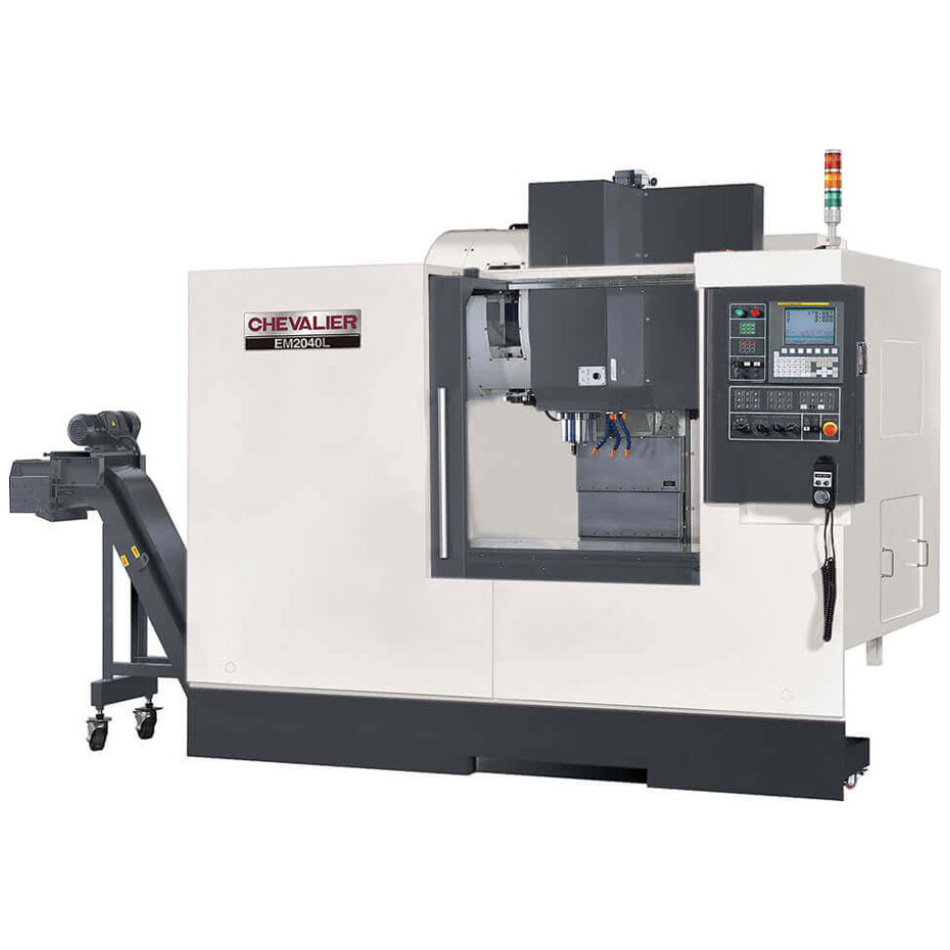

Chevalier EM2040L vertical machining center
