Chevalier UNi5X-400 5-Axis Vertical Machining Center

Decrease machining costs and increase productivity. The UNi5X-400 five-axis (4+1) vertical machining center provides stability, speed, and increased accuracy when machining complex workpieces. Increase uptime, decrease human error, and eliminate the need for special fixtures.

Specifications: Loaded with Features

CONFIGURATION
5-Axis (4+1)
CAPACITY
Table Size Ø12.5”
Maximum Part Dimension (L x W) Ø15.7”, 13.7”
Maximum Part Weight 220 lbs.
TRAVEL
XYZ 29.5”, 24.0”, 21.7”
A-Axis +30° ~ -120°
C-Axis 360°
SPINDLE
20 HP Direct drive spindle motor
Spindle Speed 12,000 rpm
CAT 40 (BIG-PLUS® dual contact)
Spindle oil chiller
TOOL CHANGER
30+1 arm type ATC
FEEDRATES
Rapid XYZ 1,417, 1417, 1,181 ipm
A/C Axis – 20 rpm
Max Cutting Feedrate 394 ipm
COOLANT/CHIP MANAGEMENT
Coolant Tank Capacity 63 gals
Chip flushing system
Ring-type spindle coolant nozzles
Cutting air blast
Oil Skimmer
Dual internal chip augers
External lift-up scraper-type chip conveyor
GENERAL
Floor Space (L x W x H) 97” x 87” x 110″
Net Weight 15,510 lbs.

Heavy-duty construction for superior stability

High-precision linear guideway design delivers high-rigidity and high-precision machining. Six carriages on the X-axis and four carriages on both the Y-axis and Z-axis ensure the machine’s stability and accuracy. The A-axis is equipped with absolute encoders.

Chip Management

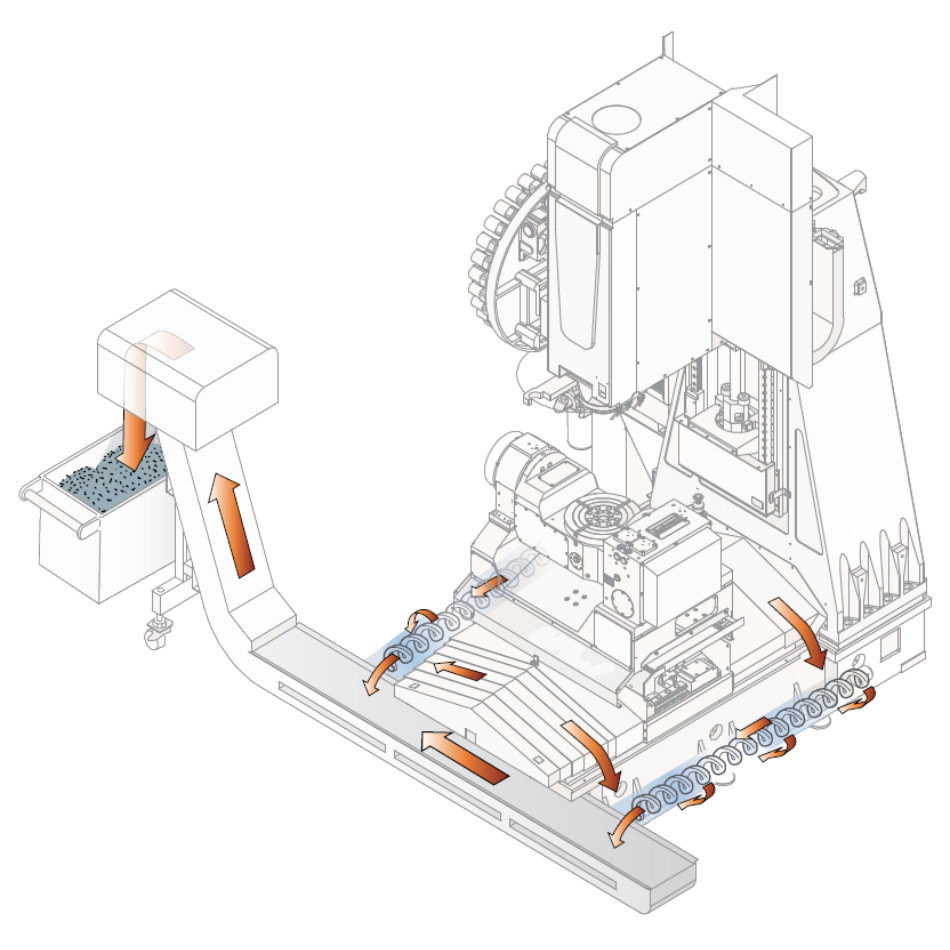

The automatic chip flushing system moves cutting chips to either side of the machine base. The screw-type chip augers deliver cutting chips to the chip conveyor located at the front of the machine base.

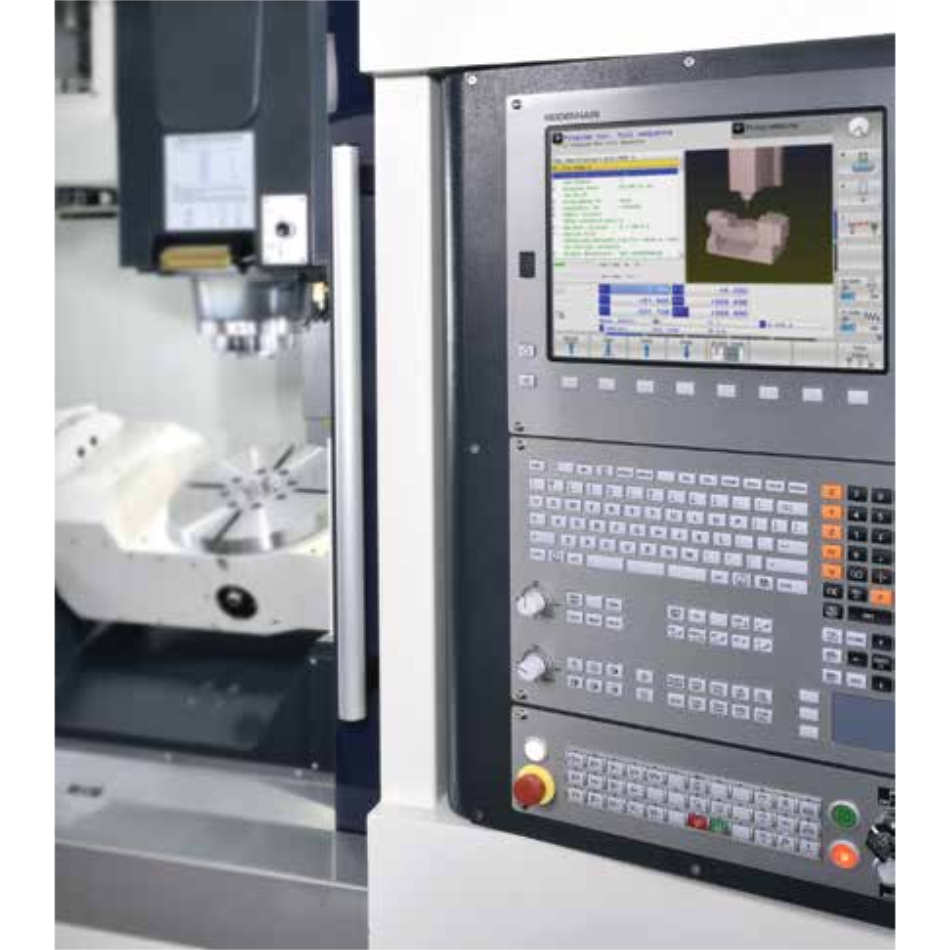

Control

Fanuc 0iM control
4+1
4-axis simultaneous
Manual Guide i
10.4″ color LCD
Tilted working plane indexing G68.2
AICC II High-speed machining
Rigid Tapping
Ethernet connection
Data server
Flash memory card slot
USB
